Pro-Vision's monitors are 1080p HD displays with various mounting options and features, often selected to best suit the vehicle, operator, or fleet needs.
3-Channel Monitors
3-Channel monitors are HD LCDs with three camera and trigger inputs, button controls, and a built-in speaker. In a standard installation, they are single-camera displays with a driver-side, passenger-side, and rear/backup camera input.
These monitors can be configured to trigger a split-screen display of the side cameras if installed with a Multiplexer or Ranger DVR. However, the split-screen function utilizes the rear-camera input, allowing only two side cameras in this configuration.
5" Monitor

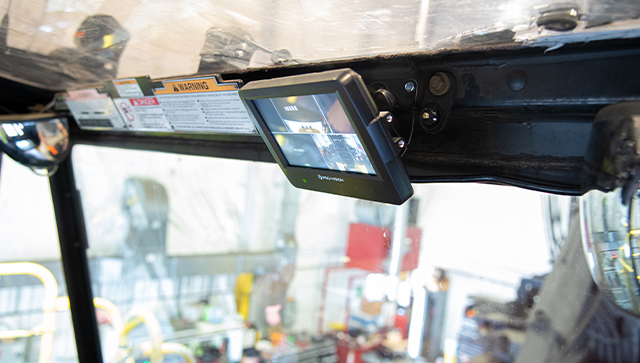

[PM-1960S] The 5" monitor is a compact display, providing clear images in small cabin spaces.
| Monitor | Sample Mounting |

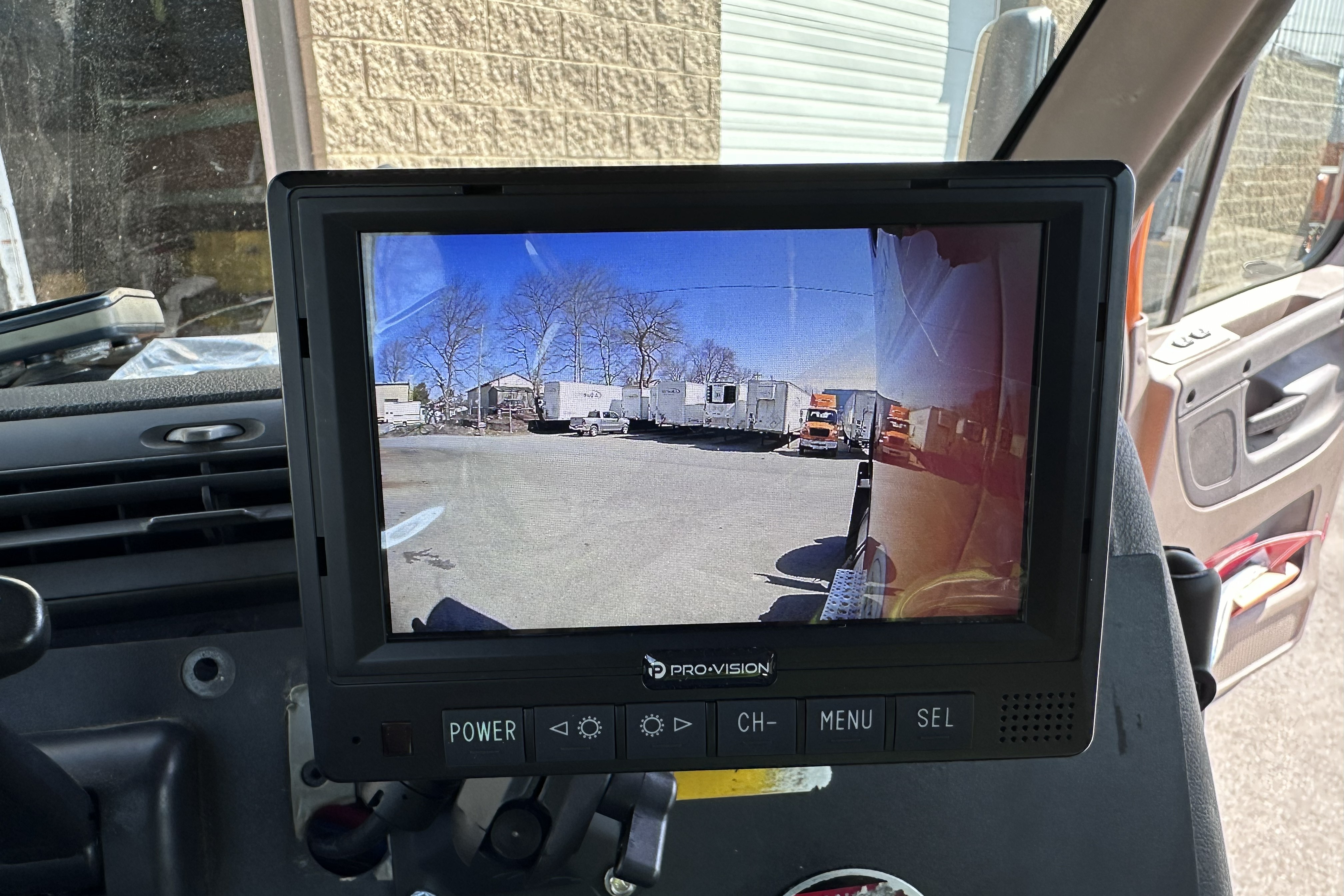

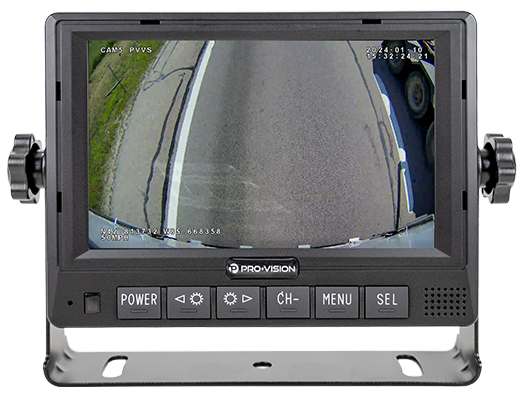

7" Monitor

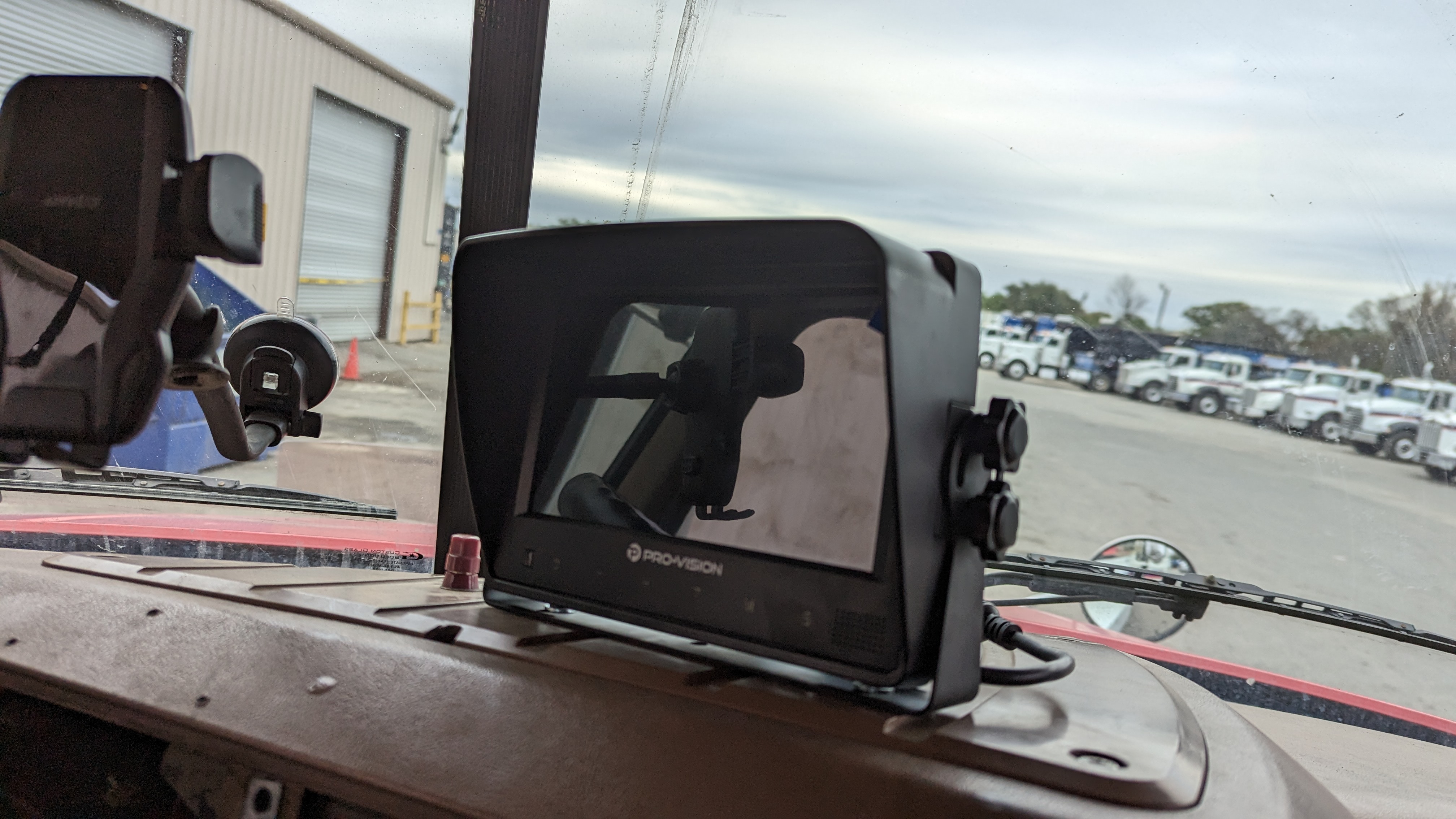

[PM-1970S] The 7" monitor is a waterproof (IP66) display that offers excellent image clarity from its three camera inputs.
| Monitor | Sample Mounting |
Learn more about the 3-Channel Monitors.
Quad Monitors

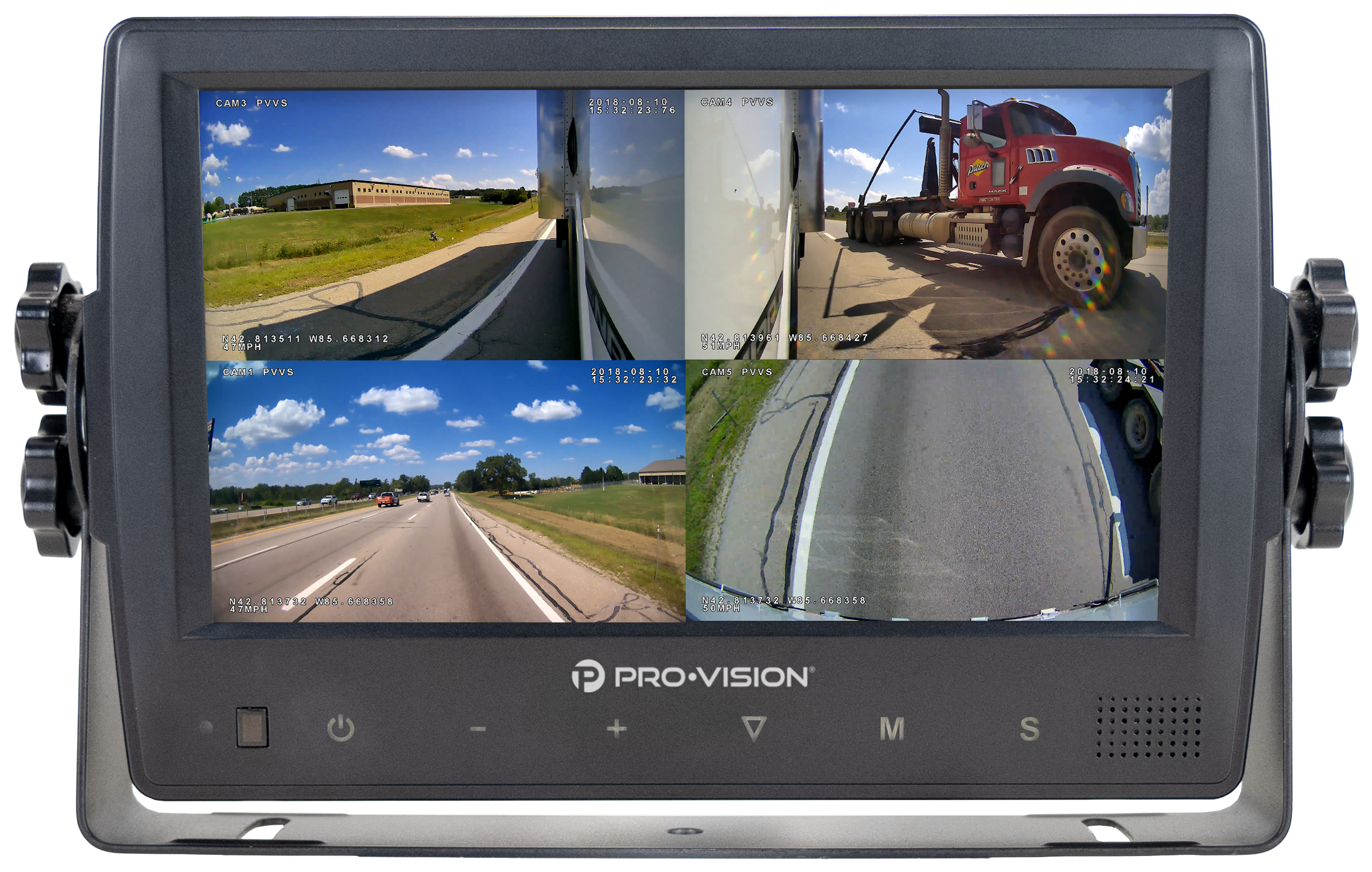

The Quad monitors are highly configurable HD LCDs with four video and five trigger inputs. Quad monitors can display various multi-screen configurations and feature touchscreen and remote controls. In a standard installation, the four inputs connect to a front or interior, driver-side, passenger-side, and rear/backup camera.
7" Quad Monitor

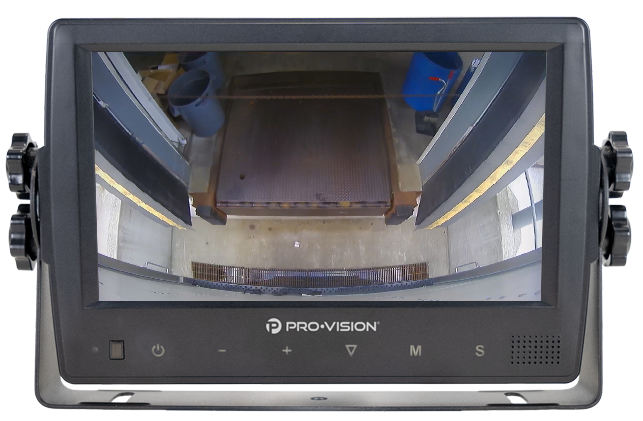

[PM-1980S] The 7" Quad is a waterproof (IP66) display with a button, touchscreen, and remote controls offering excellent image clarity from its connected cameras.
| Monitor | Sample Mounting |

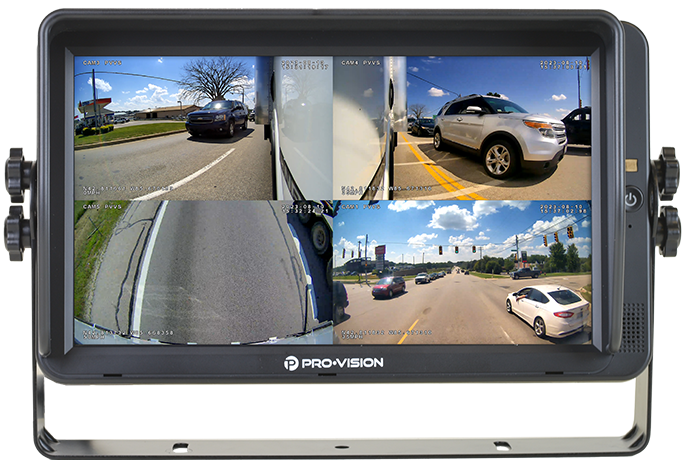

10" Quad Monitor

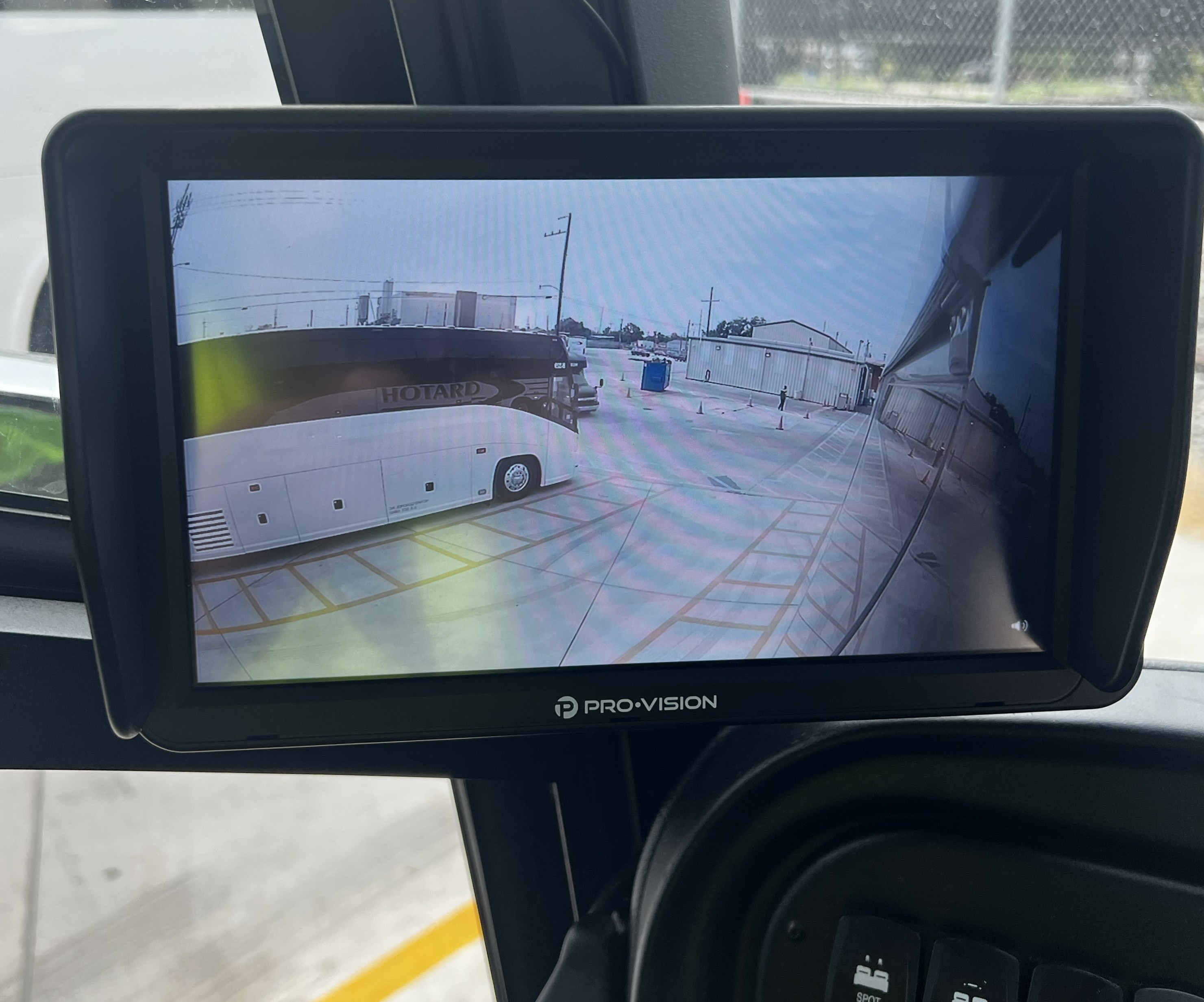

[PM-1990S] The 10" Quad is the largest display, providing a vehicle operator with the most detailed view of its single and multi-camera displays.
| Monitor | Sample Mounting |
Learn more about the Quad Monitors & their features
Mounts
Monitors should be mounted fully in view of the driver (and within reach, if possible) without obstructing the vehicle's operation or systems. All Pro-Vision monitors are compatible with three mounting brackets, allowing them to adapt to any vehicle cabin and driver's needs.

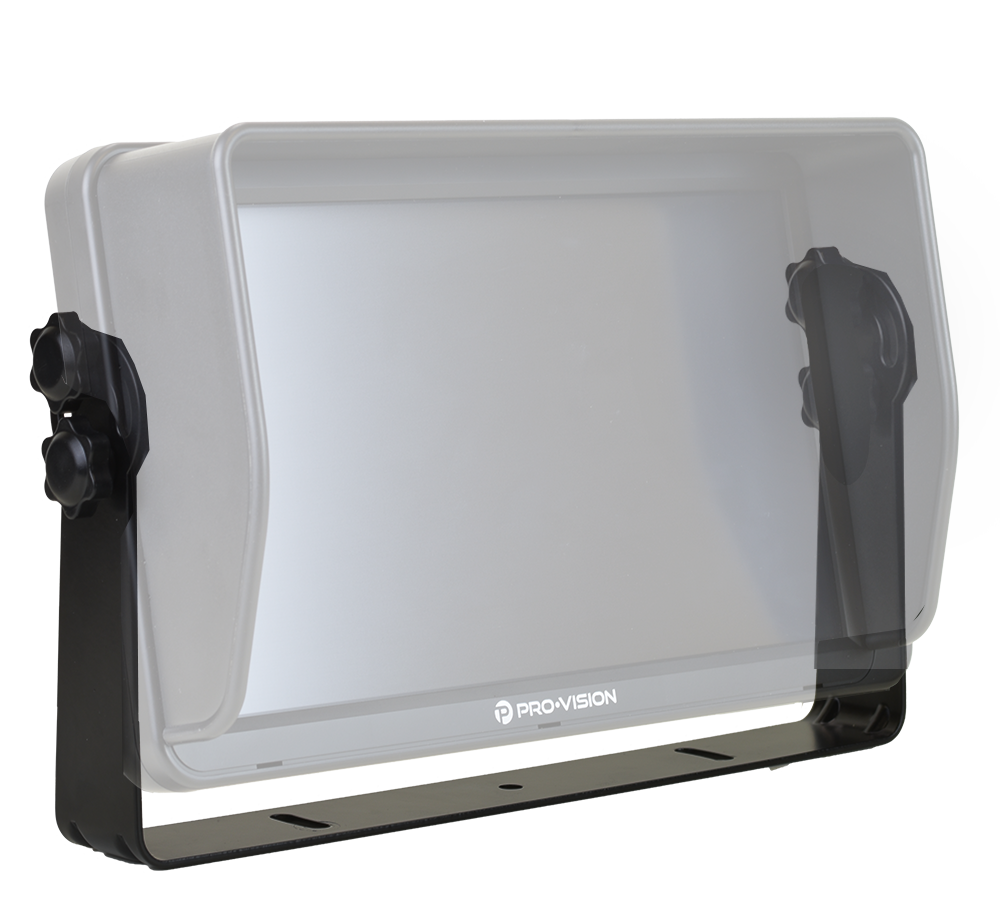

U-Bracket

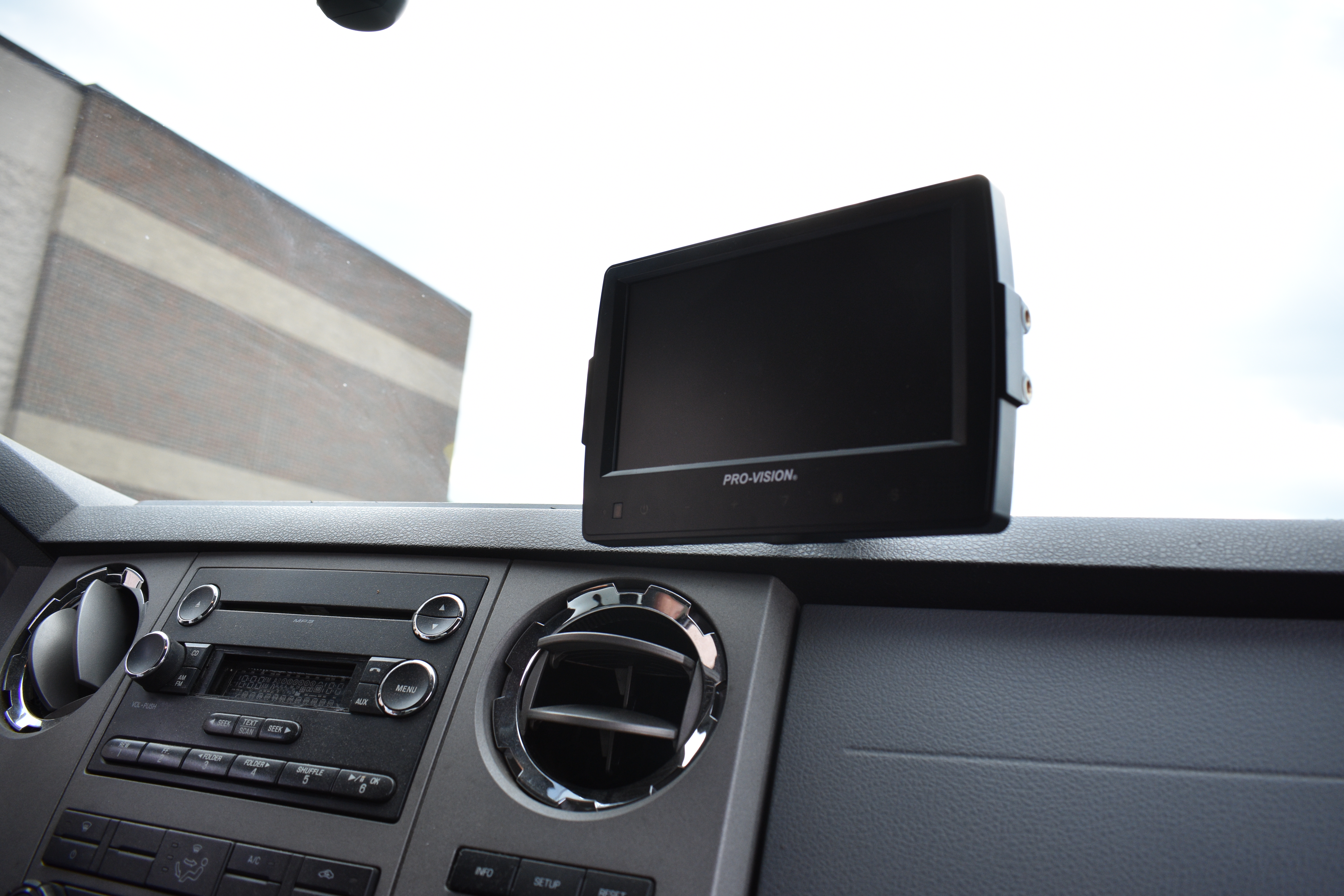

(Included) The U-Bracket Mount works best on a surface parallel to the road (like a dashboard or ceiling). It's a sturdy mount that only allows for up/down screen adjustments, but leaves the monitor's back unobstructed.
| U-Bracket | Sample Mounting |
Fan Mount

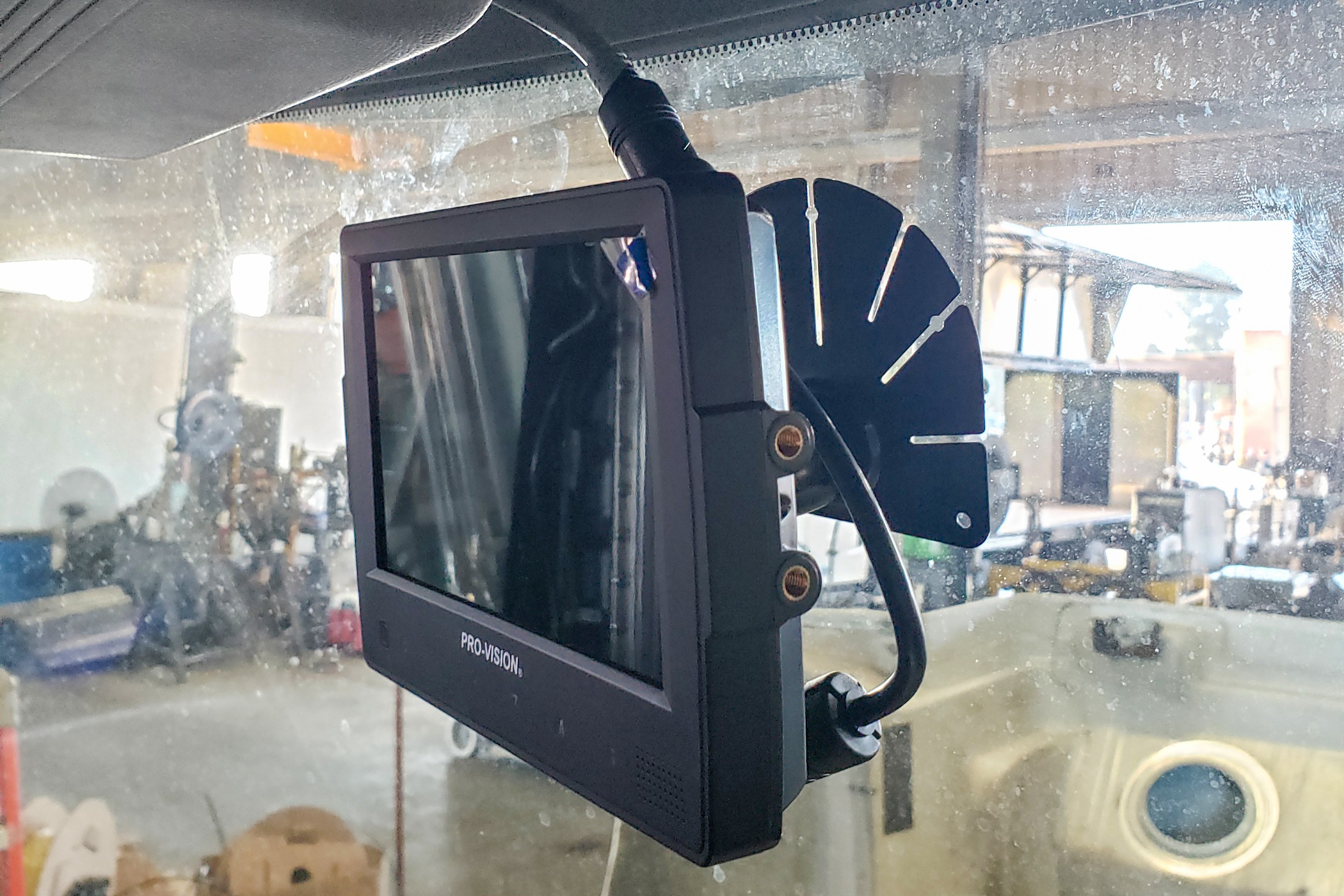

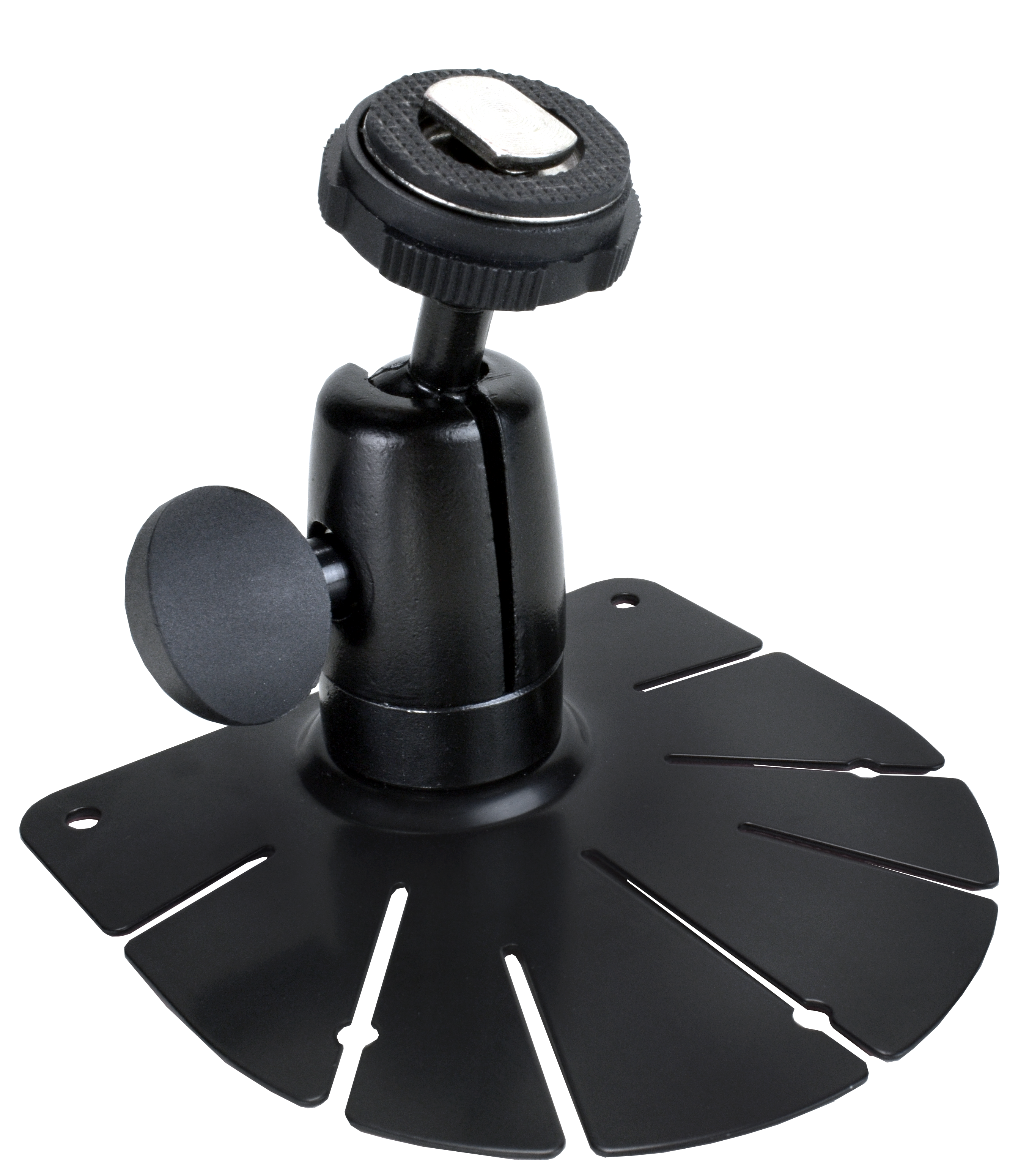

(Included) The Fan Mount can rotate from front to back, tilt from left to right, and be mounted to the vehicle using hardware or adhesive.
| Fan Mount | Sample Mounting |

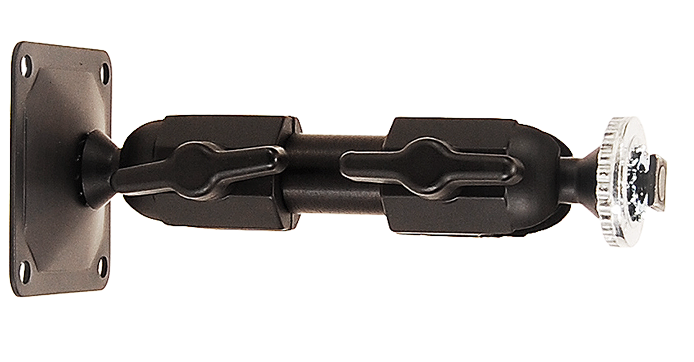

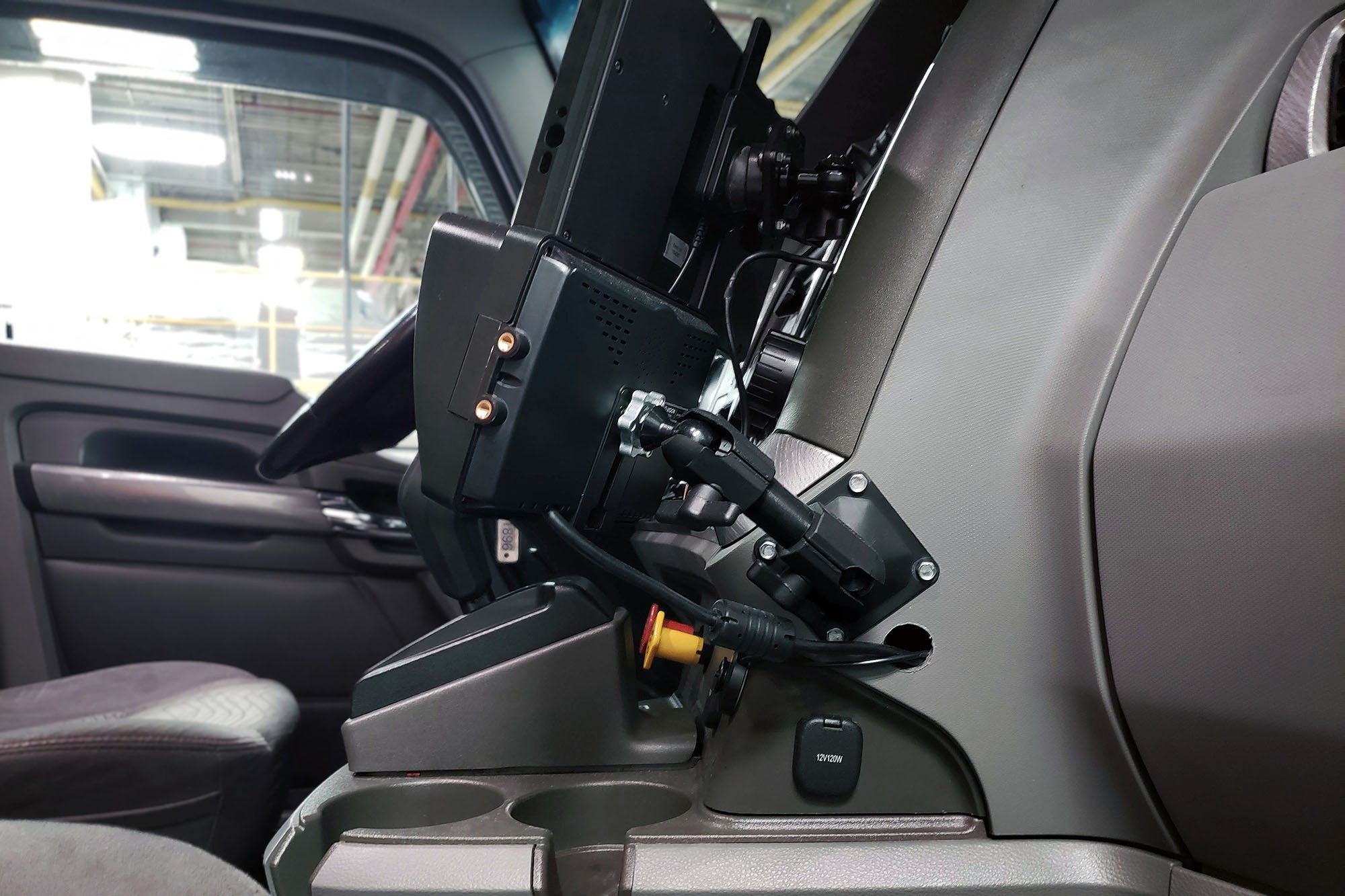

Pedestal
(Optional) The flexible 6" pedestal has a smaller mounting surface.
| Pedestal | Sample Mounting |
