The 5” Monitor [PM-1960S] and 7” Monitor [PM-1970S] are configurable 3-channel HD LCDs with button controls and a built-in speaker. These single-camera displays provide a driver with enhanced visibility of the vehicle’s sides and rear.
If installed with a Multiplexer or Ranger DVR, 3-channel monitors can be configured to split-screen display the side cameras; however, this function requires the rear camera input, limiting the configuration to the two (2) cameras.

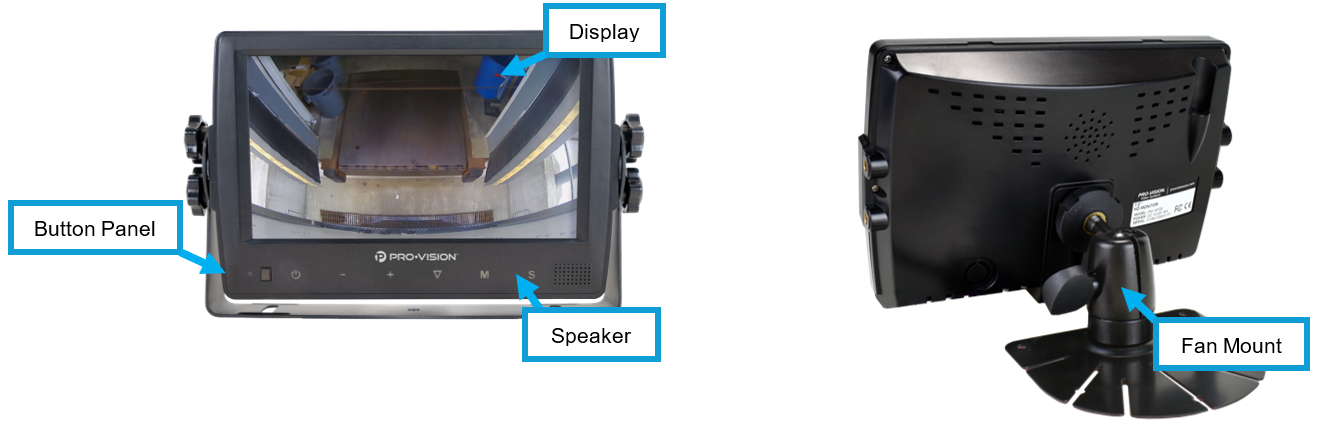

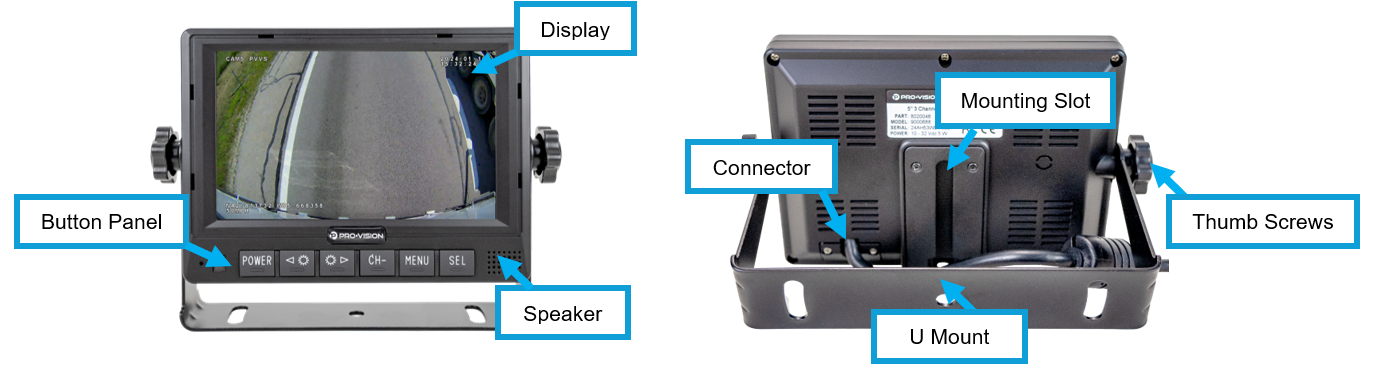

Monitor Parts

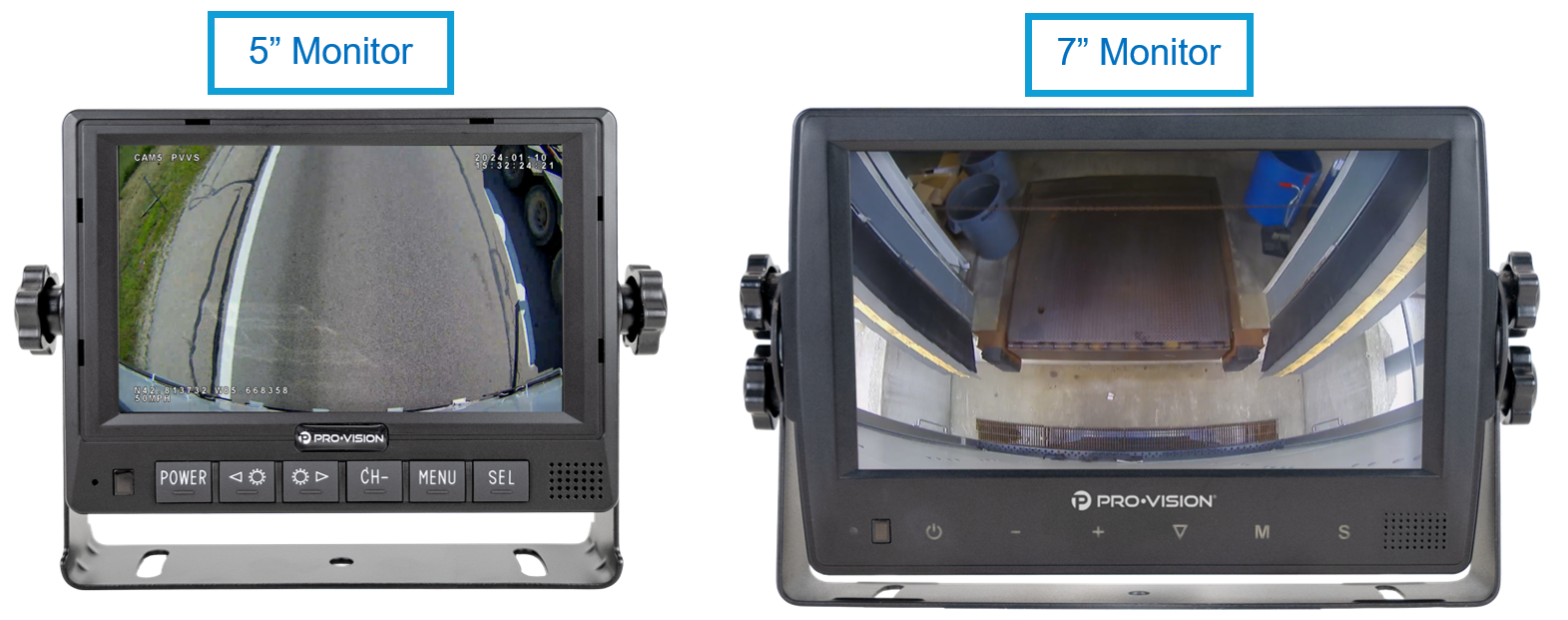

5" Monitor
7" Monitor
Features & Specifications
Key Features
- Three (3) camera inputs – view video from up to three (3) connected cameras.
- Three (3) trigger signal inputs – one for each corresponding color-coded camera input.
- Triggered camera views – automatically display the camera views with the vehicle signal triggers.
- Configurable – adjust the monitor picture, camera display, system volume, and language, etc.
- Camera compatibility – supports all analog Pro-Vision cameras.
- A built-in speaker for audible alerts and connected camera audio.
- Optional and configurable parking line overlay on the rear camera when the vehicle is in reverse.
Monitors are compatible with Pro-Vision object detection technology, which automatically detects obstructions near the vehicle, displays responsive overlays on the monitor, and audibly alerts the driver to potential collisions.

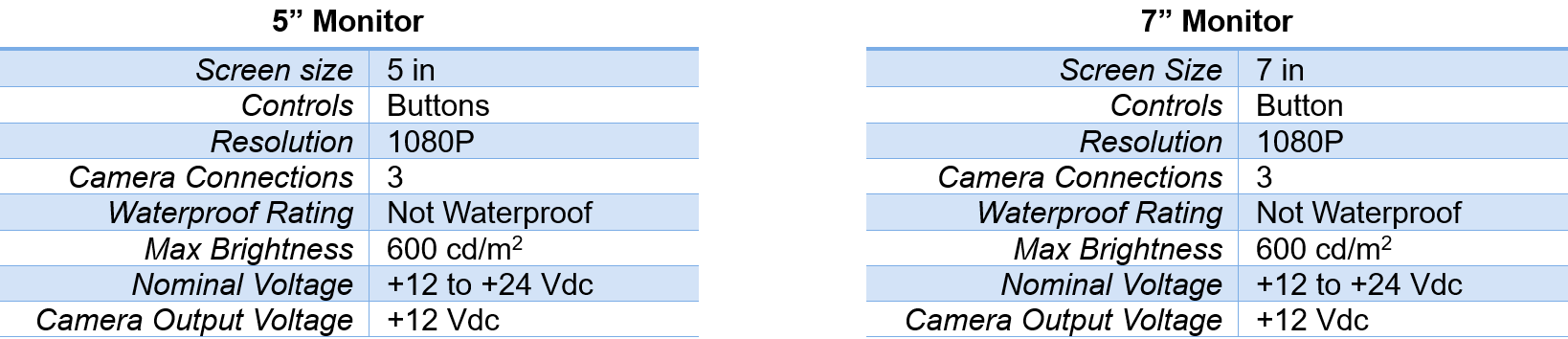

Specifications
Mounts & Accessories

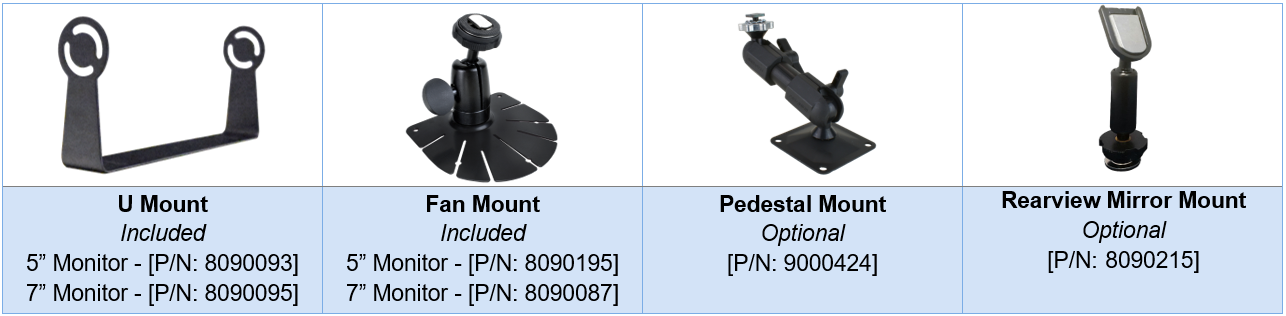

Compatible Mounts

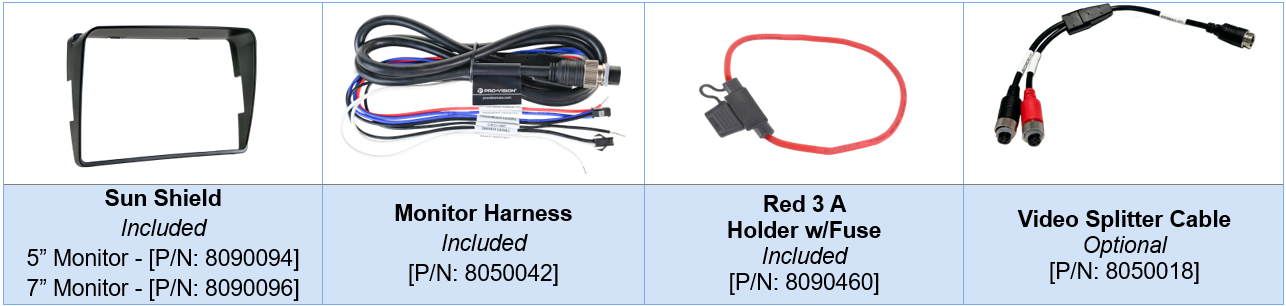

Accessories
