The 7” and 10.1” Quad Monitors are highly configurable 4-channel HD LCDs with touchscreen, button, and remote controls. Each monitor can display up to four cameras simultaneously, giving the driver enhanced visibility of the vehicle's sides, rear, and interior areas.
In this Article

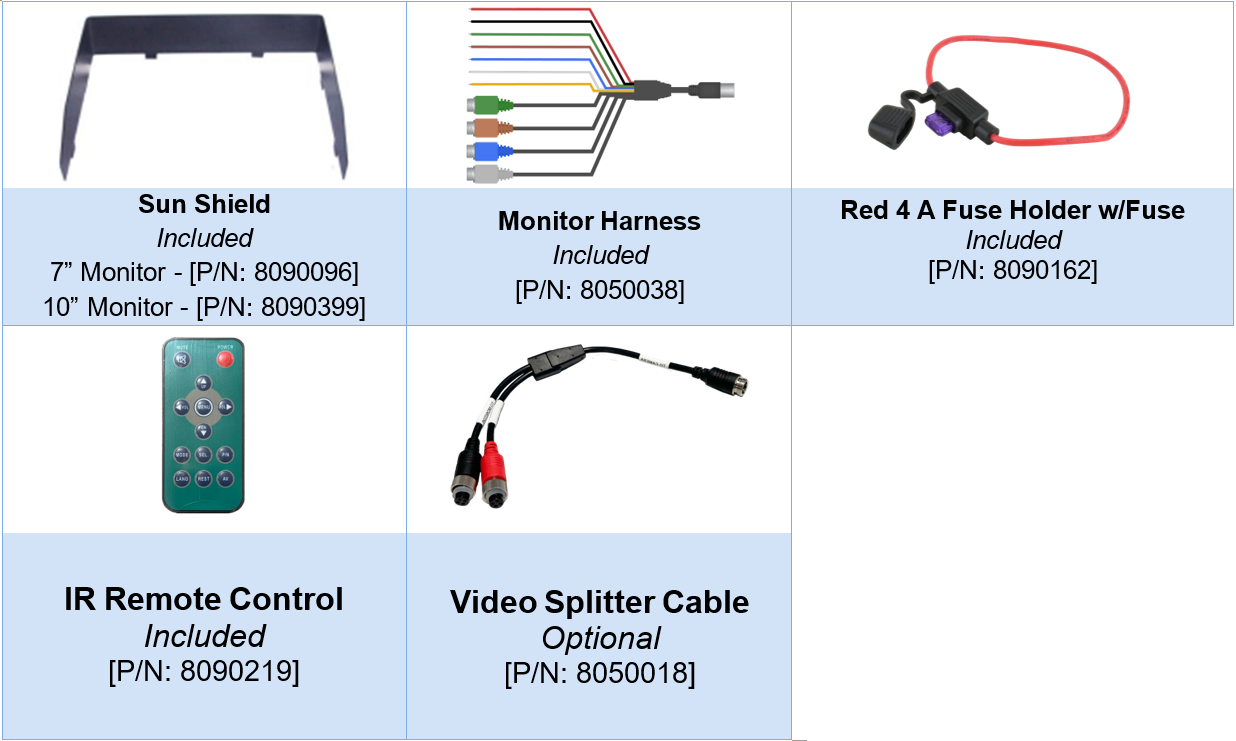

Parts

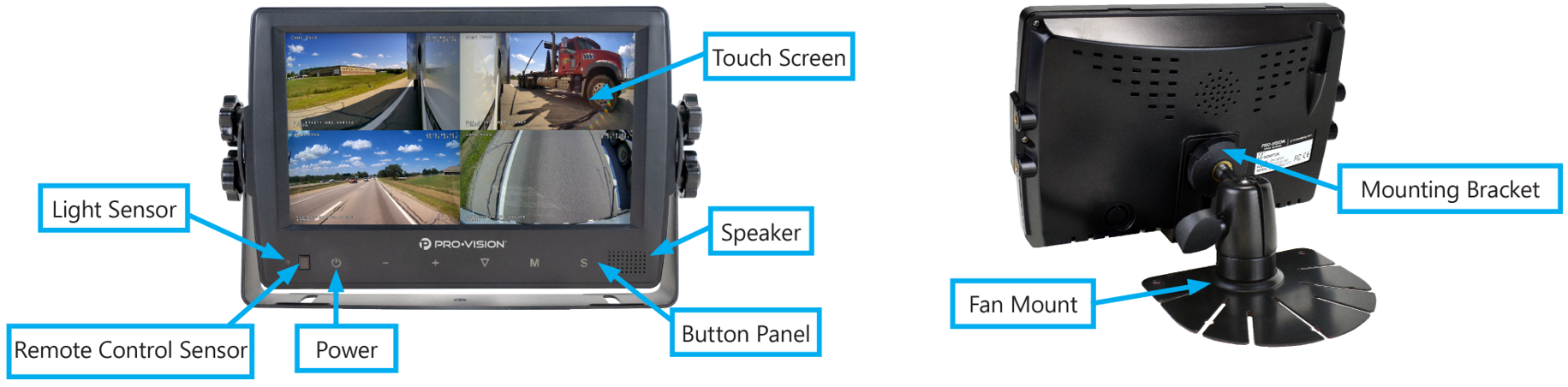

7" Quad Monitor

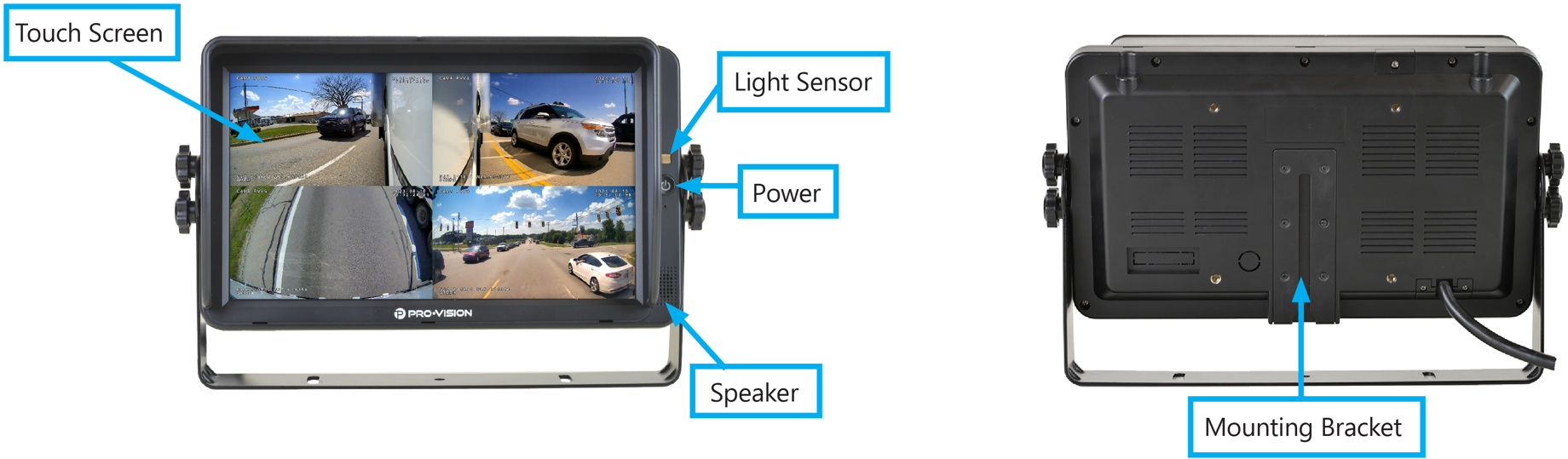

10.1" Quad Monitor

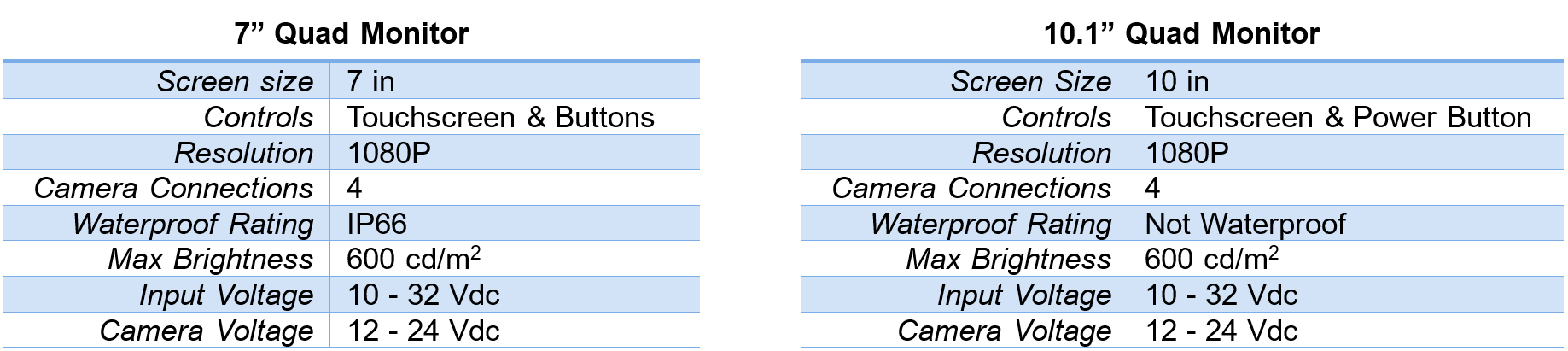

Features & Specifications
Key Features
- Four (4) camera inputs – viewable individually or simultaneously in a configurable multi-screen display.
- Five (5) trigger wire inputs – for vehicle signals to automatically trigger camera images.
- Multiple control options – allow users to configure the monitor and switch between camera views easily.

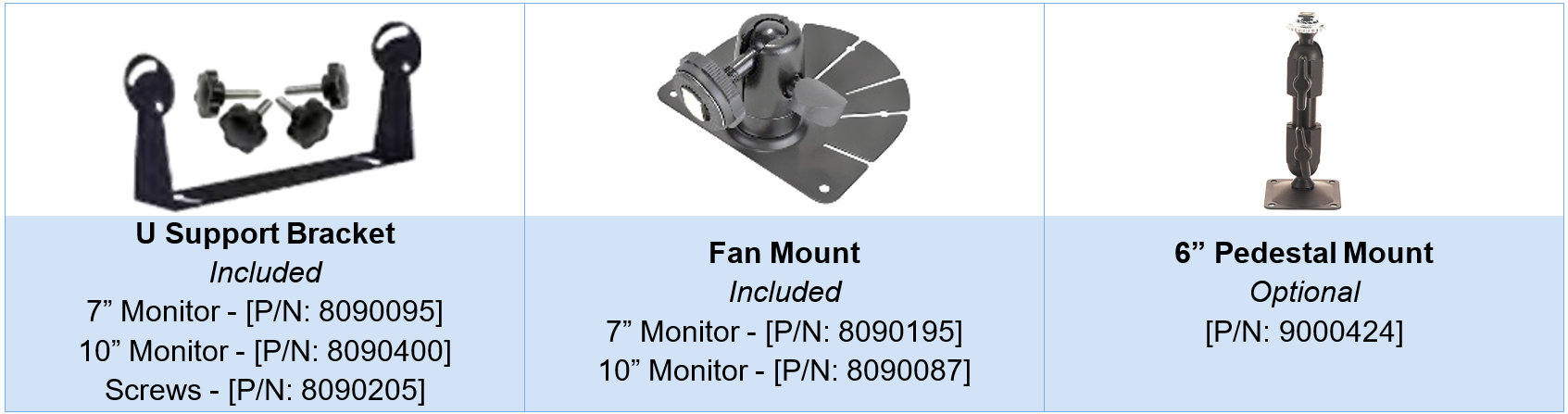

- Three (3) compatible mounts – the monitor can be installed in most vehicles without issue.
- A built-in speaker for audible alerts and connected camera audio.
- Highly configurable – Volume, Brightness, Screen Configuration, Camera Image, Parking Line Overlay, Language, Triggers, and Video Format are all configurable settings on a Quad monitor.
Additionally, monitors are compatible with Pro-Vision object detection technology. These systems automatically detect obstructions near the vehicle, display responsive overlays on the camera images on the monitor, and audibly alert the driver to potential collisions.
