Heated Camera

The Heated Camera [PC-1927] is an analog high-definition device that can operate at temperatures as low as -40°F, featuring a waterproof (IP69K) zinc housing, stainless steel mounting bracket, and protective hood. Additionally, the camera captures a 105° horizontal and 65° vertical field of view, with an adjustable angle, infrared night vision, and a built-in microphone.

It is typically used as a backup camera in harsh weather conditions.


Heated Component

The camera can operate at low temperatures because it continuously heats its components by drawing power from its connection. For this reason:

1. The camera should be powered by a Ranger DVR or Quad Monitor.
   • If the power source is a Quad monitor:
     • The system cannot exceed two heated cameras.
     • The monitor needs to be configured to [Constant] power the heated cameras.
2. Ice or snow must be removed from the camera before its use.
   • The camera's warming component cannot remove build-up.

Mounting

Rear cameras typically mount at the highest, most centered point available to capture the broadest view of the area. Ice or snow buildup should be removed before its use, which should be considered when selecting its mounting location.

1. Select the mounting location.
   • Verify that there is sufficient clearance on and behind the selected location to mount the camera and route its cable into the vehicle body.
   • If possible, connect the camera to a monitor or a camera view tester to verify that the selected mounting area captures the desired view.
2. If the device is not being used as a backup camera:
   • Remove the screw at the back of the camera from the [MIR] position, then replace it in [NOR] to unmirror the image.
3. Remove the camera's bracket and hood.
   • Remove the camera's four (4) side screws and set them aside.
4. Hold the camera's bracket to the vehicle body and mark the center cable hole and side mounting notches.
5. Drill the camera's cable and mounting holes into the vehicle body.
   • Verify that the camera can be safely mounted at the selected location, if not already done.
   • Use a 7/8” hole saw to drill the A/V Cable hole in the marked location.
   • Use a 3/32" bit to drill the two (2) pilot mounting holes in the marked location.
6. Select the direction to mount the camera's bracket so the camera can be aimed at the desired position.
   • Hold the camera to the bracket to view the desired position on the mounting area.

   • The bracket may need to be flipped to achieve the desired aim.

7. Mount the camera.
   • Mount the camera's bracket with the two provided (2) screws.
   • Run the camera's cable through the center cable hole into the vehicle body.
     • Install a grommet or adhesive around the cable to seal the hole.
   • Hold the camera and its hood to the bracket, then loosely reinstall the four (4) screws and washers.
8. Aim the camera.
   • Tilt the camera to capture the desired view.
     • If possible, connect the camera to a monitor or camera view tester to verify its view.
   •  Tighten the four (4) side screws to secure it in place
9. Route the camera's cable towards its connection device.
   • This could be a monitor, DVR, wireless transmitter, and/or object detection control box.
   • Use A/V Extension cables to extend the camera's connection up to 30 m, and an A/V Splitter Cable to split the signal between multiple devices as needed.
   • Follow the vehicle's OEM wiring and paths whenever possible.
   • Secure the cable to the vehicle's wiring or body.

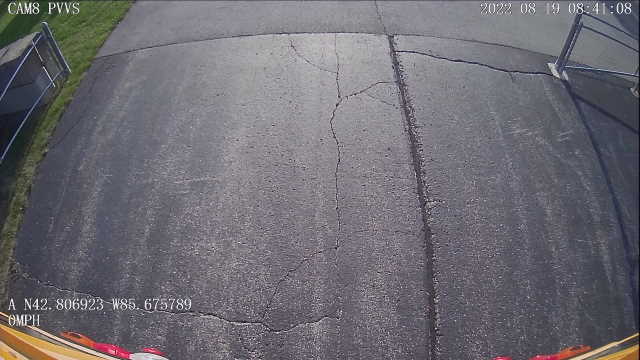

Example Mounting	Example Recorded View

Quad Monitor Configuration

If the camera is being powered by a Quad Monitor:

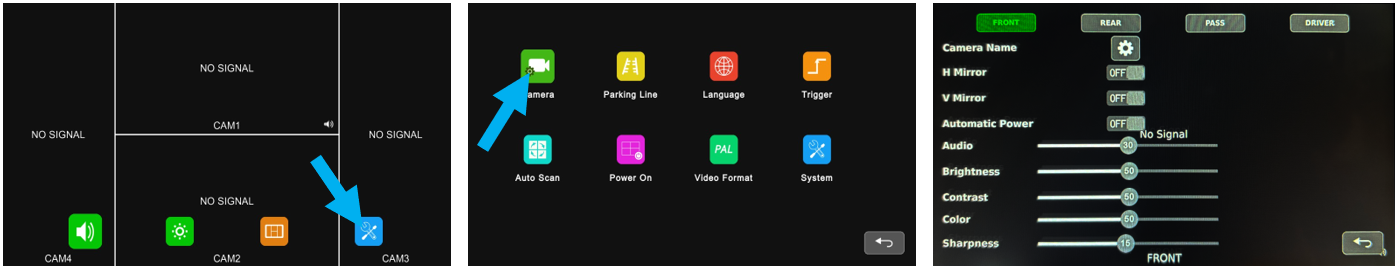

1. Open the Settings menu and select the "Camera" icon.
   • This opens the camera configuration screen, overlaid on the camera's feed.

2. Select the heated camera(s) from the tabs at the top of the screen (it should be highlighted in green).
   • It should typically be connected to the brown camera cable on the monitor and display on the "rear" tab.

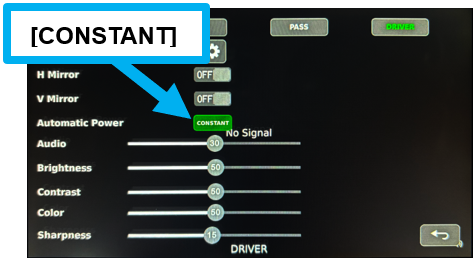

3. Locate the "Automatic Power" setting, then tap the toggle to switch it to [CONSTANT].
