Pro-Vision's 1080P Analog High-Definition (AHD) cameras are waterproof (IP69K) devices, offering a variety of designs and features to accommodate adaptable mounting, recording, and vehicle system needs.
Marker Light Camera

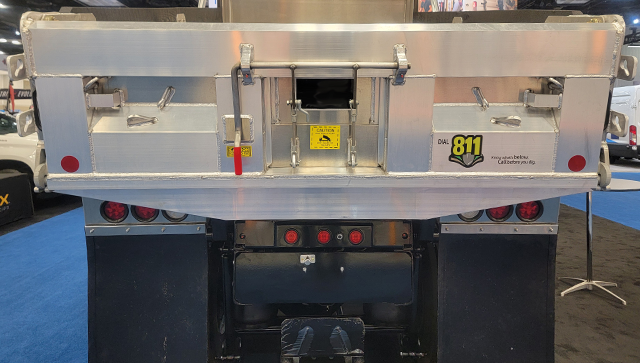

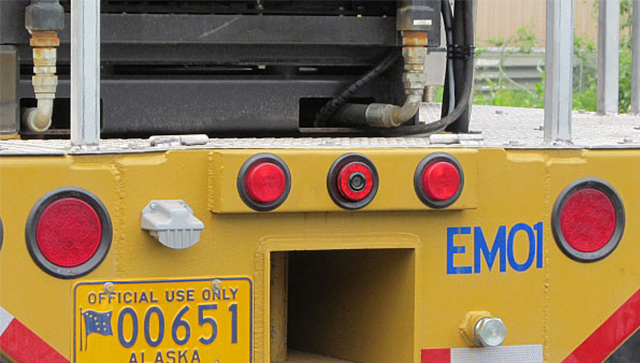

[PC-1910] A compact camera integrated into a 2" or 2.5" SAE/DOT-compliant LED marker light for discreet recording, with a 145° horizontal and 80° vertical field of view.
| Example Mounting | Recorded View |
Low-Profile Camera

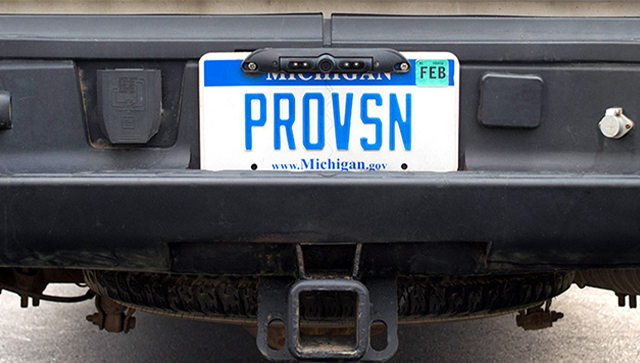

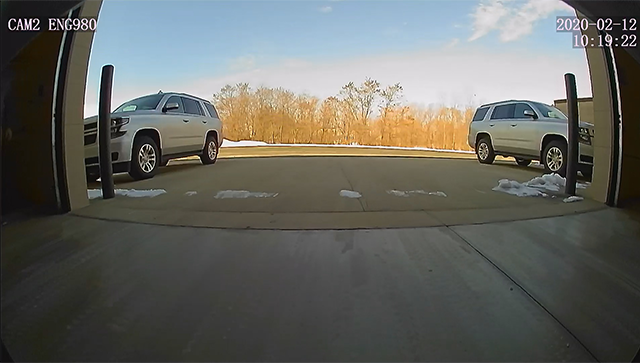

[PC-1912] A discrete, versatile camera with a 150° horizontal and 80° vertical field of view, infrared night vision, and a built-in microphone. It is often installed as a rear camera, at the top of straight trucks, or above the license plate.
| Example Mounting | Recorded View |
Heavy-Duty Standard Camera

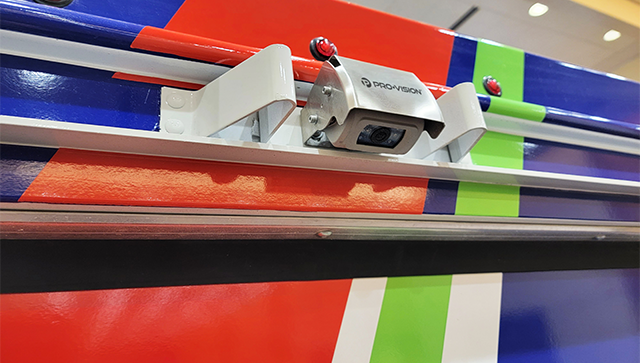

[PC-1916] This sturdy camera has a 110° horizontal and 60° vertical field of view, infrared night vision, and a built-in microphone. Its bracket allows for versatile mounting options: above, below, or directly onto a surface. As it is often used as a backup camera, its image can be mirrored directly on the camera's body. An optional heavy-duty bracket can be added to the camera for extra protection in harsh conditions.
| Example Mounting | Recorded View |
Flush-Mount Camera
[PC-1918] This discrete camera installs seamlessly into any vehicle body or bumper, providing a 130° horizontal and 70° vertical field of view and infrared night vision.
| Example Mounting | Recorded View |
Side Camera

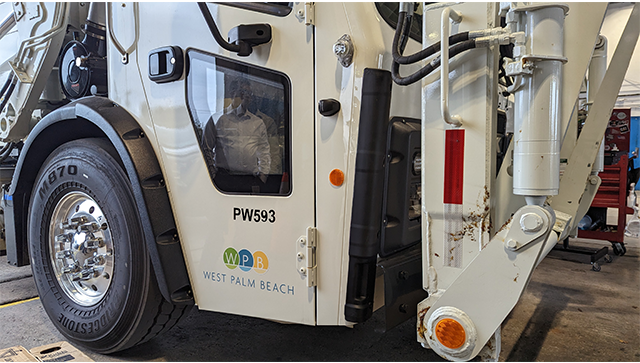

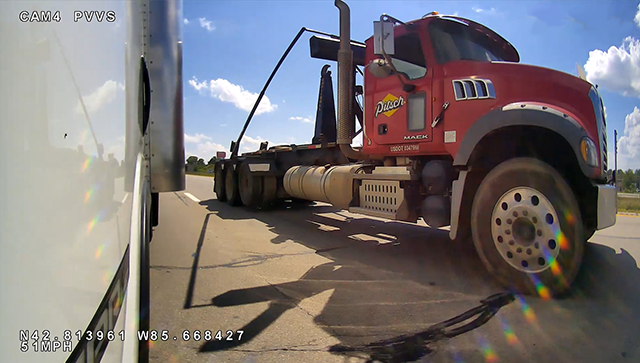

[PC-1920] This compact, sturdy camera has a 145° horizontal and 75° vertical field of view, infrared night vision, an adjustable angle, and a built-in microphone. It's typically mounted on a vehicle's sides and aligned to capture the vehicle's blind spots.
| Example Mounting | Recorded View |
Mini-Dome Camera

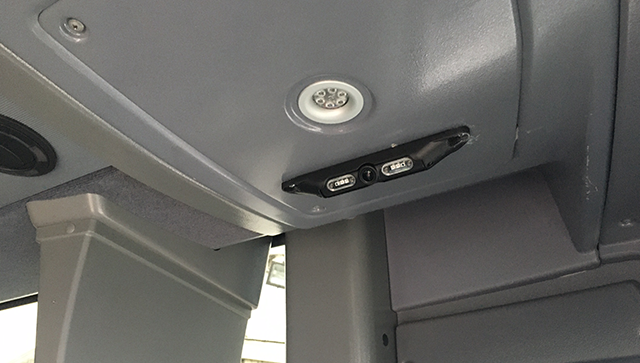

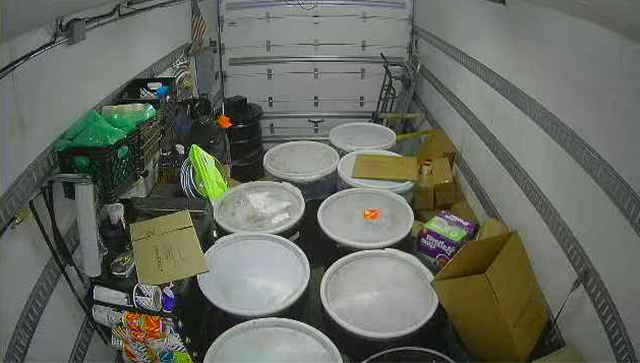

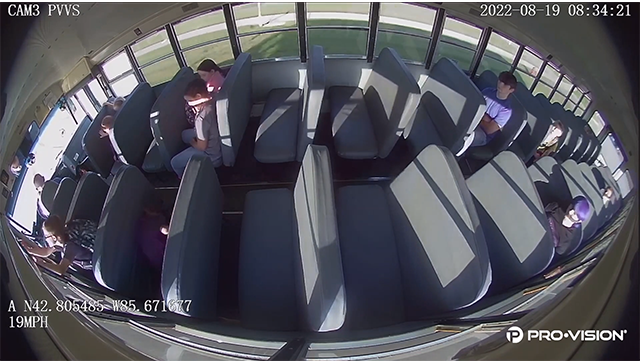

[PC-1921] This camera has a wide, 180° horizontal and 95° vertical field of view with infrared night vision, an adjustable angle, and a built-in microphone; it's designed for maximum interior vehicle coverage.
| Example Mounting | Recorded View |
Forward-Facing Camera

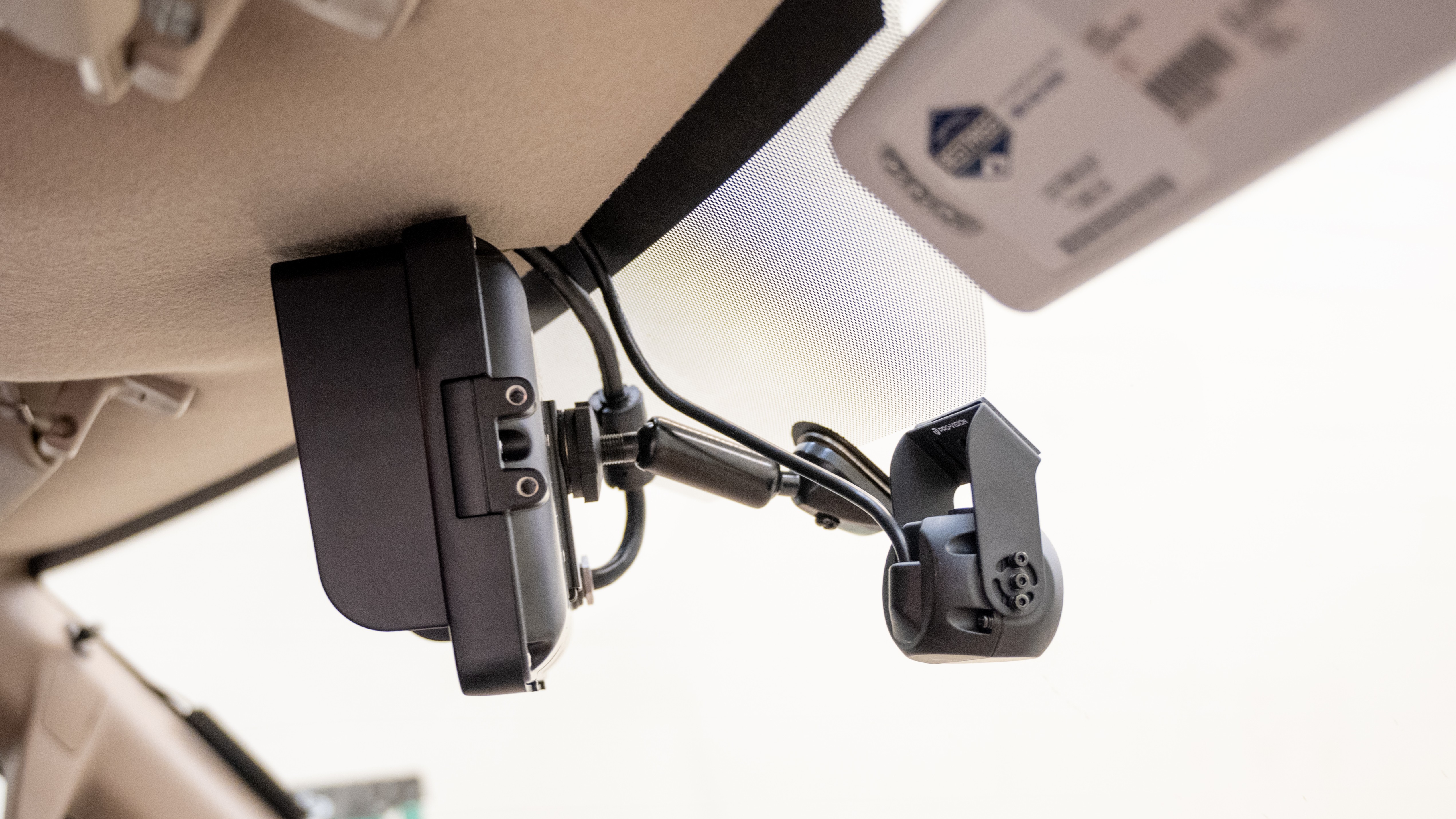

[PC-1922] The wide dynamic range (WDR) forward-facing camera captures a 130° horizontal and 70° vertical field of view while ensuring that captured footage is always clear and balanced, regardless of light conditions. It mounts at the vehicle's front to capture the road ahead and features a built-in microphone.
| Example Mounting | Recorded View |
Ultra-Wide Low-Profile Camera
[PC-1923] This ultra-wide camera captures a 180° horizontal and 90° vertical field of view with infrared night vision and a built-in microphone. While it isn't waterproof, it has the widest field of vision, making it ideal for interior use.
| Example Mounting | Recorded View |
Mirror-Mount Side Camera
[PC-1924] This camera mounts to a vehicle's mirror arms, extending visibility as far as possible with a 145° horizontal and 75° vertical field of view and infrared night vision. As it can be mounted with hose clamps, it's the recommended side-camera solution for fleets that must avoid drilling into the vehicle body.
| Example Mounting | Recorded View |
Heated Camera
[PC-1927] This camera warms itself to withstand extreme cold environments. With a 105° horizontal and 65° vertical field of view and infrared night vision, this camera can operate in temperatures as low as -40°F.
| Example Mounting | Recorded View |
