Configure a laptop's IPv4 address

Connecting to a Ranger DVR via Ethernet requires a laptop with an Ethernet port configured to a compatible Internet Protocol Version 4 (IPv4) address. To configure the IPv4 address on a Windows device:

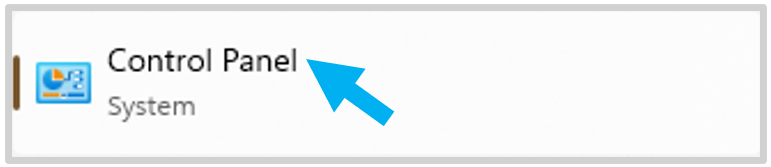

1. 1. Search for and open the "Control Panel."

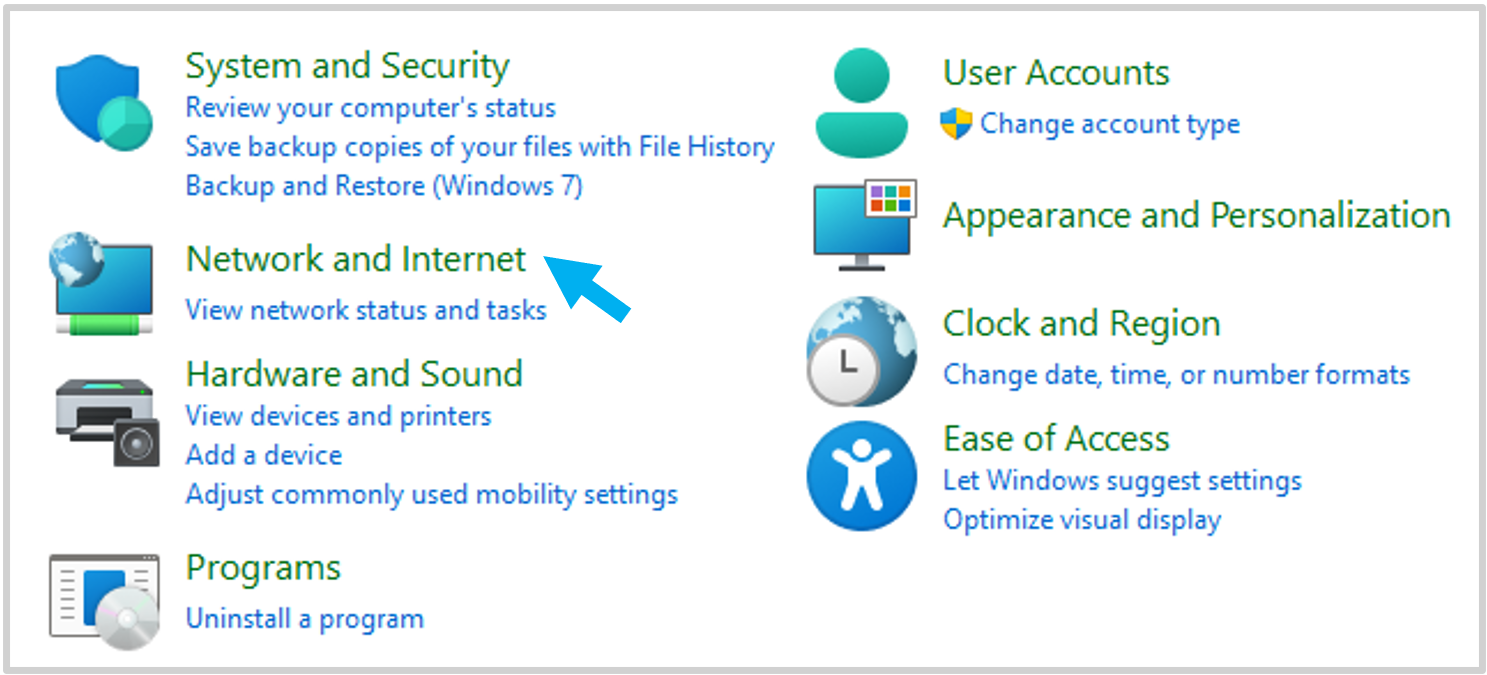

   2. Select "Network and Internet," then the "Network Sharing Center."


   3. From the sharing center's left panel, select "Change Adapter Settings."

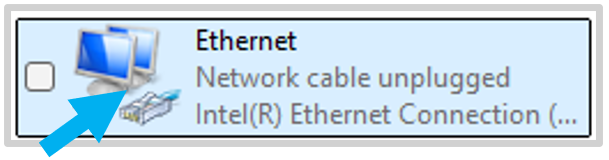

   4. Right-click on "Ethernet" and select "Properties."

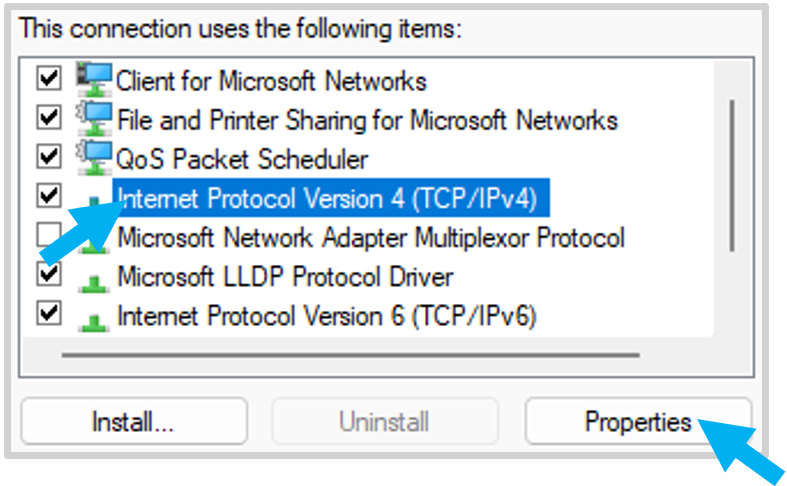

   5. In the "Ethernet Properties" panel, locate and select "Internet Protocol Version 4 (TCP/IPv4)."
      • • Select the text, not the checkmark next to it.
   6. Click on the [Properties] button, underneath and to the right of the list.

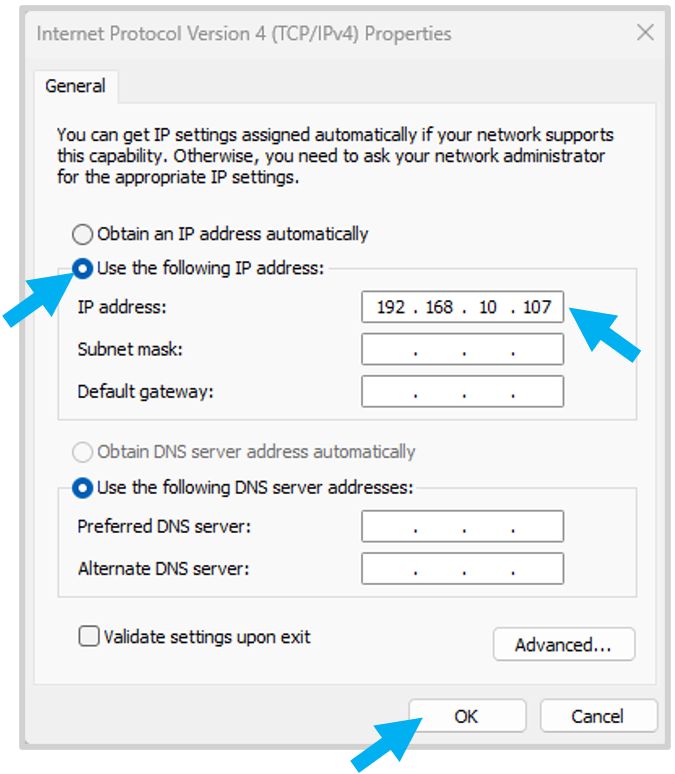

   7. In the "General" panel that displays:
      1. Select "Use the following IPv4 address."
      2. Type 192.168.10.107 in the "IPv4 address" open text field.
      3. Type 255.255.255.0 in the "Subnet mask" open text field.
      4. Click [OK] to close the windows.
