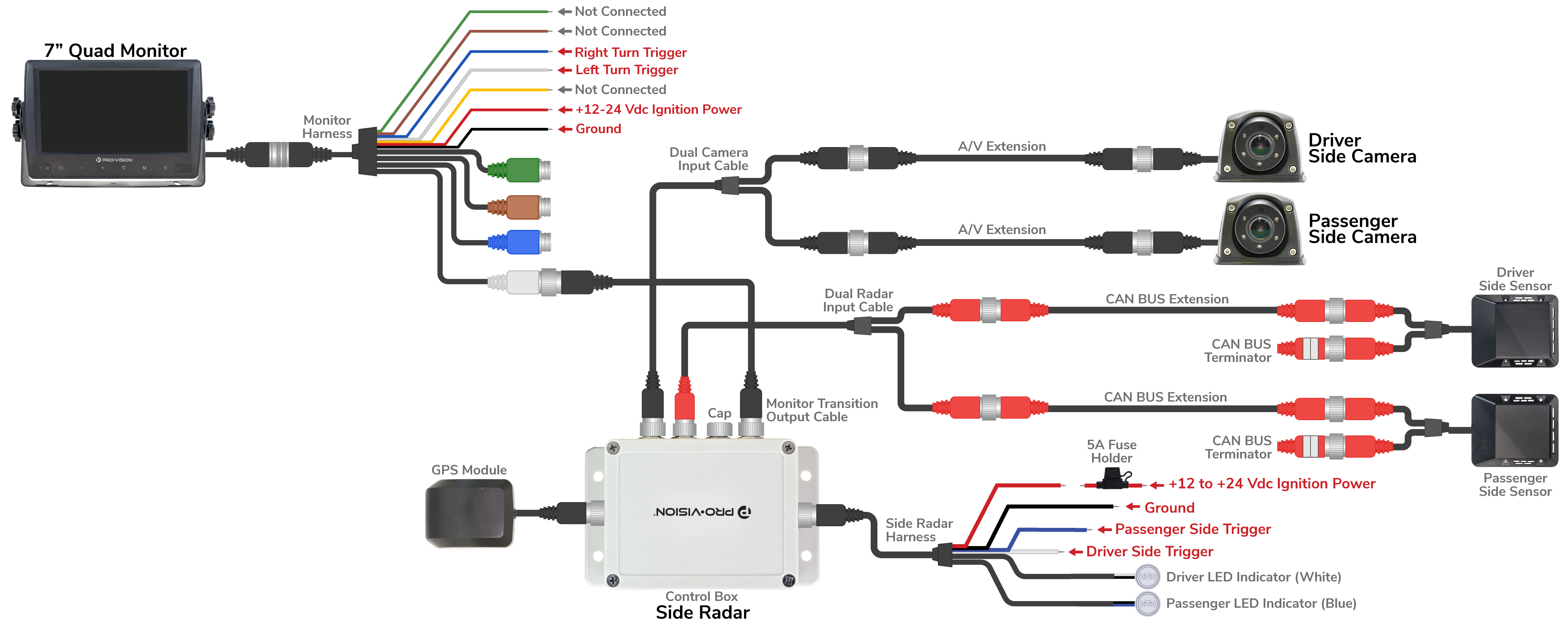

Quad Monitor & Side View Radar: Display Configuration

For the Radar to automatically display the camera view corresponding by the vehicle signal, configure the monitor’s trigger output:

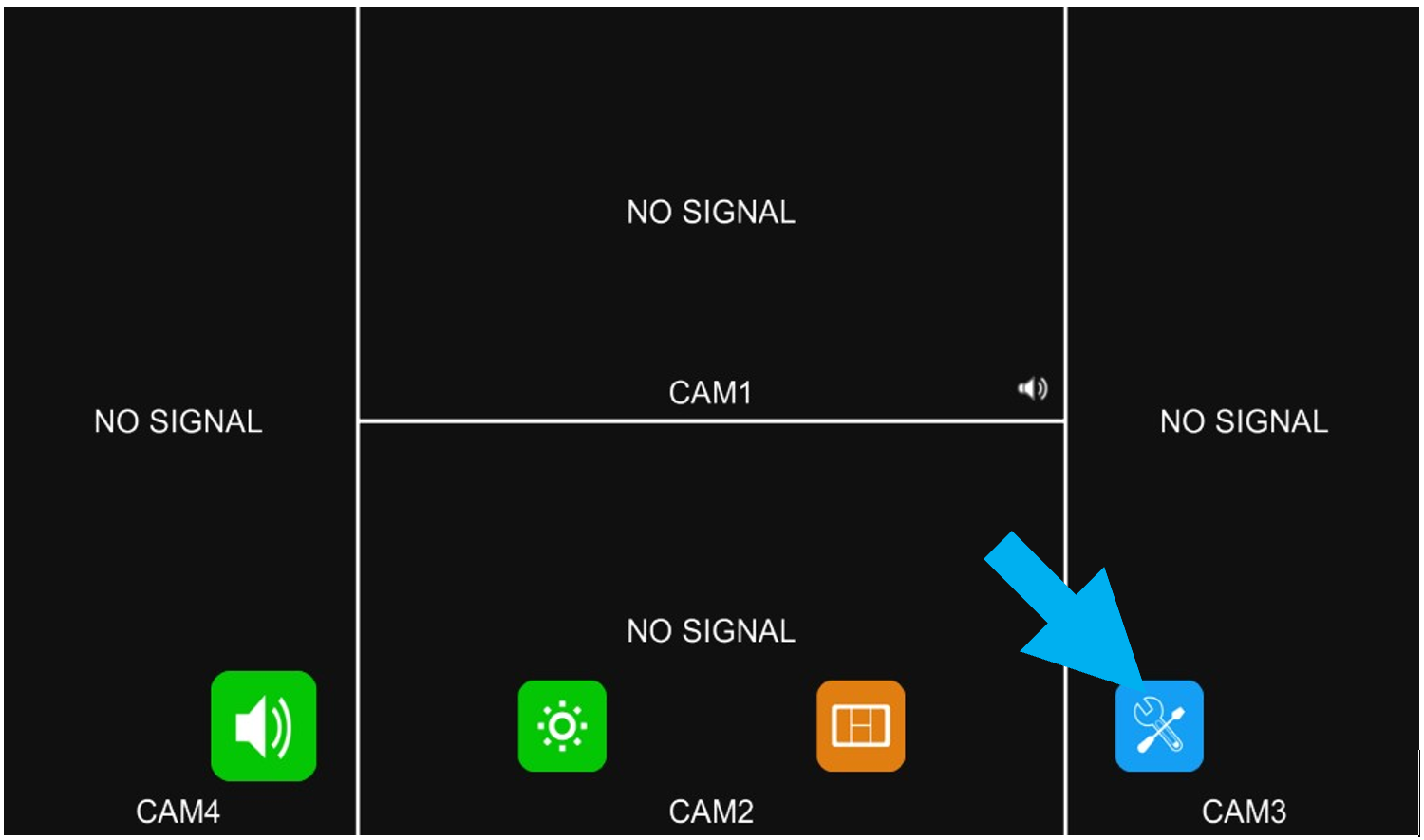

1. Open the monitor’s “Settings” menu.

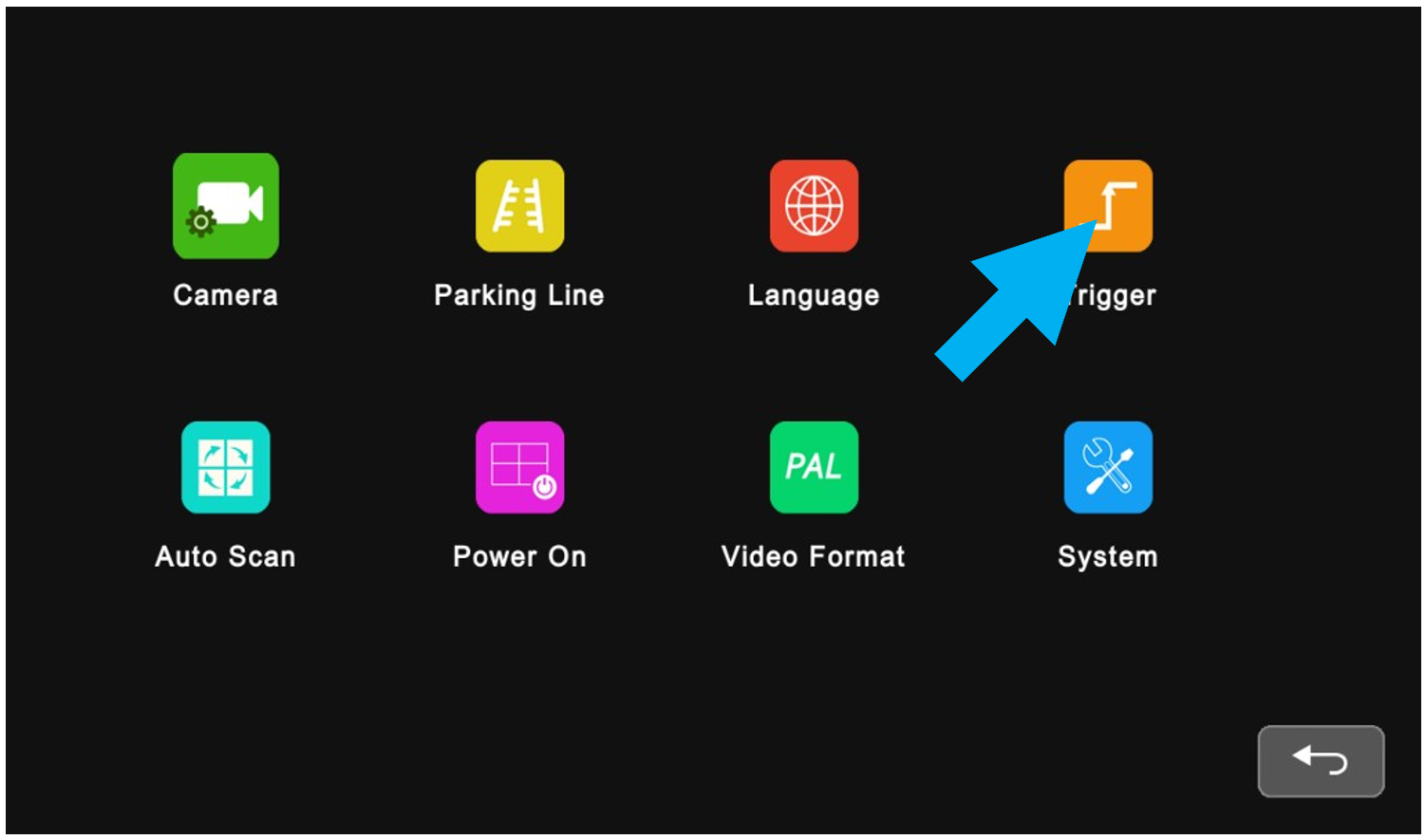

2. From “Settings,” select “Trigger” to open the configuration menu.

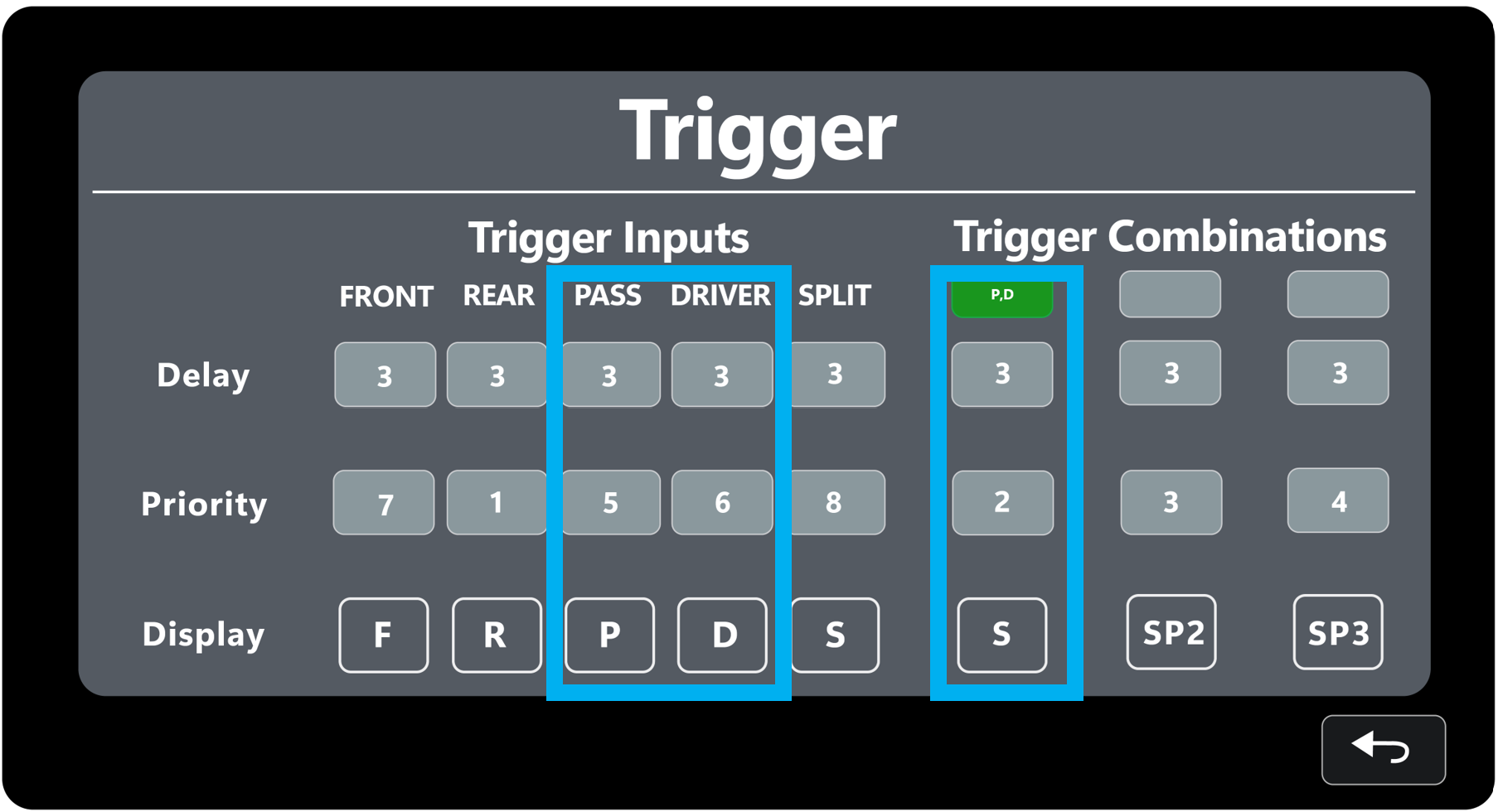

3. Locate the passenger, driver, and hazards (both passenger and driver) trigger input columns.

   1. The passenger trigger is labeled “PASS” in the “Trigger Inputs” section.
   2. The driver trigger is labeled “DRIVER” in the “Trigger Inputs” section.
   3. The hazards trigger has a [P,D] input in the “Trigger Combinations” section.

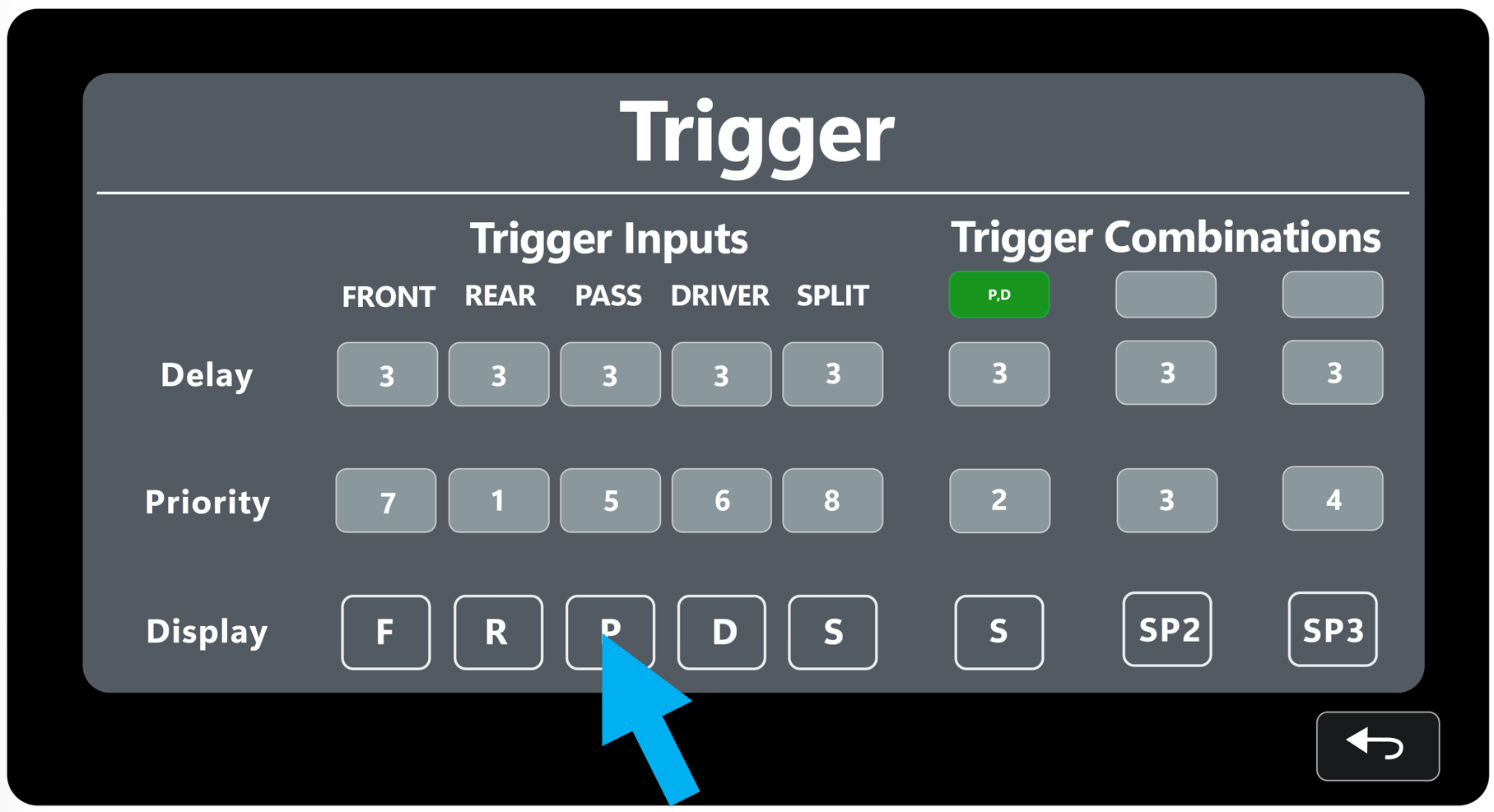

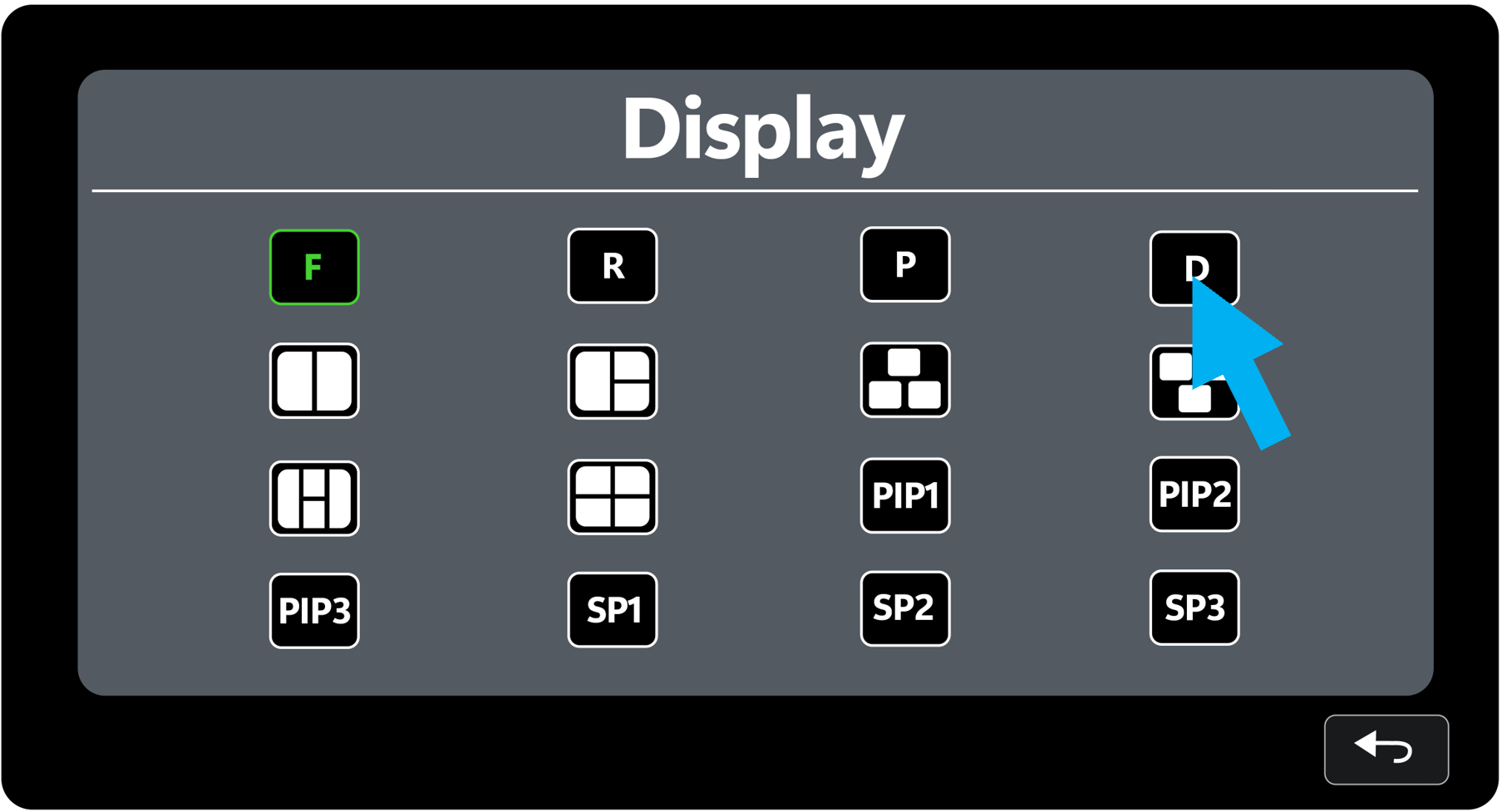

4. For all located trigger input columns, select “D” (for the Driver camera) in the bottom “Display” row.
