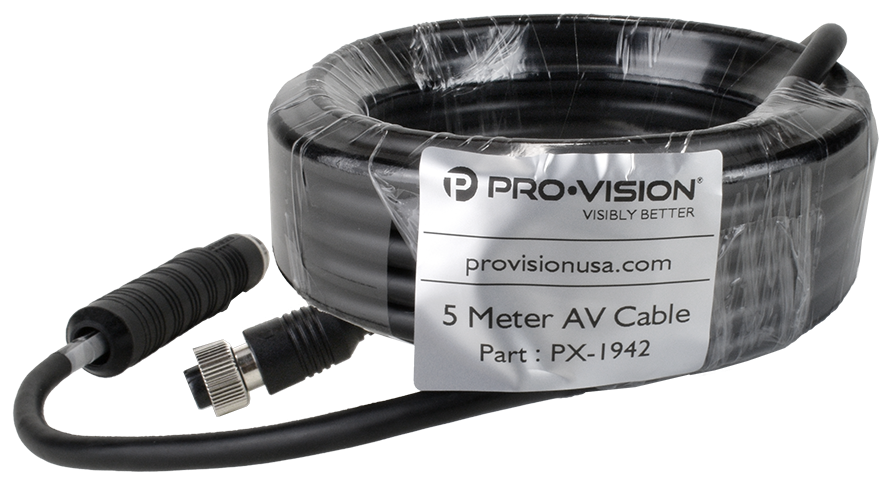

The A/V (Audio-Video) Extension cables extend the output of a connected camera up to 30 m (approximately 98 ft). This allows camera systems to be installed on most vehicles, regardless of their size or routing complexity.
There are two types of extensions available: standard and armored cables. Standard cables are the most commonly used installation accessories, while armored cables have the same inner composition and function, but are encased in a stainless steel braid for enhanced protection.

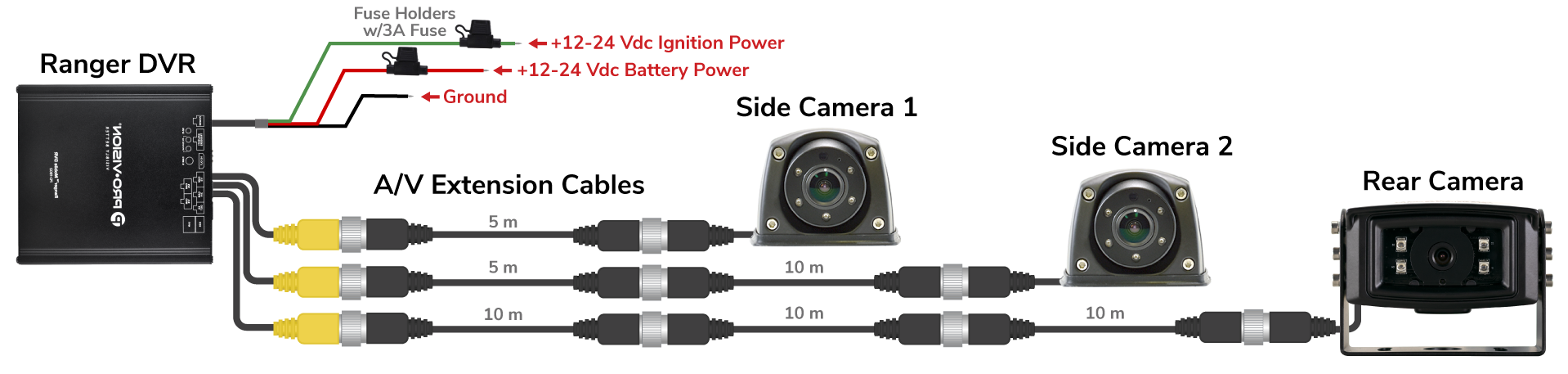

Any combination of these cables can be used to extend the connection, as long as the maximum 30-meter extension is not exceeded. nly as far as necessary to avoid coiling or damaging excess cabling.
Cable |
Part Number |
Length (in feet) |
Extension Type |
|---|---|---|---|
| 3 m | [PX-1941 / 8050130] | 9 ft 10 in | Standard |
| 5 m | [PX-1942 / 8050060] | 16 ft 4.8 in | Standard |
| 10 m | [PX-1943 / 8050061] | 32 ft 9.7 in | Standard |
| 10 m | [PX-1943L / 8050240] | 32 ft 9.7 in | Armored |
| 20 m | [PX-1944 / 8050256] | 65 ft 7.4 in | Standard |
