PD-1902 Ranger DVR: Factory Reset

Manual Factory Reset

1. With the unit already on, press and hold the [STOP] button.
2. At approximately seven (7) seconds, the DVR will beep once. This switches the Wi-Fi mode from client to AP and vice versa. Continue to hold the [STOP] button.
3. At approximately fifteen (15) seconds, the DVR will beep twice. Release the [STOP] button.
4. The DVR will reboot to complete the reboot cycle (factory reset).

Factory Reset via the Interface

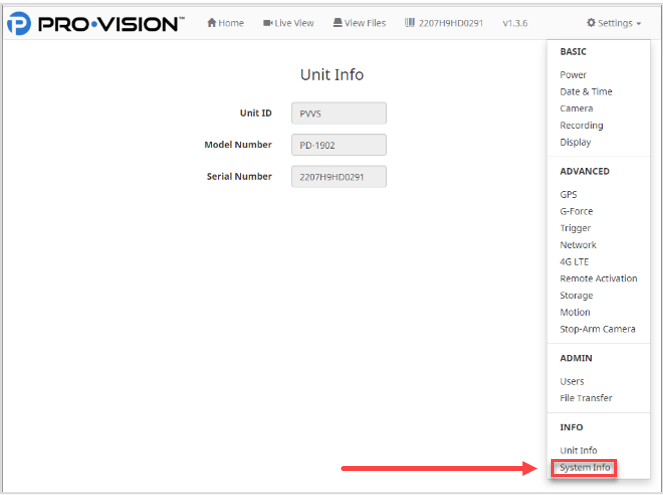

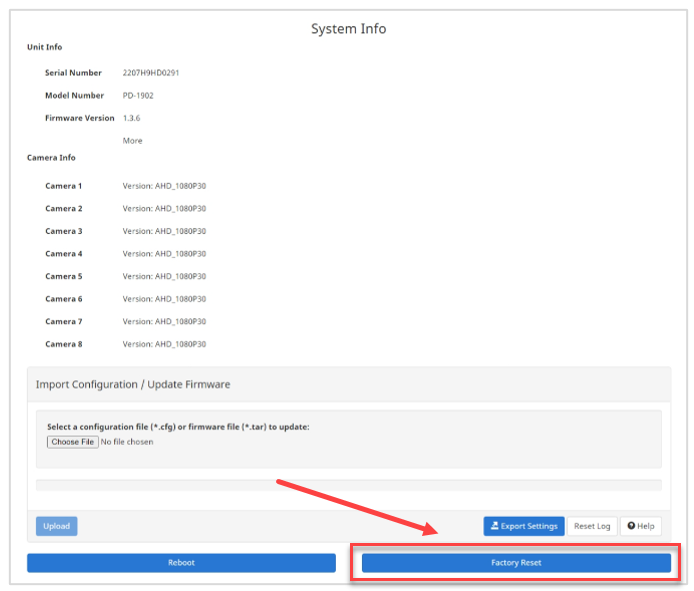

Connect to the DVR. Once in the user interface, go to "Settings" then "INFO/System Info" then select the "Factory Reset" button at the bottom of the page.
