Multiplexers Overview

Multiplexers

Two (2) Channel AHD Multiplexer

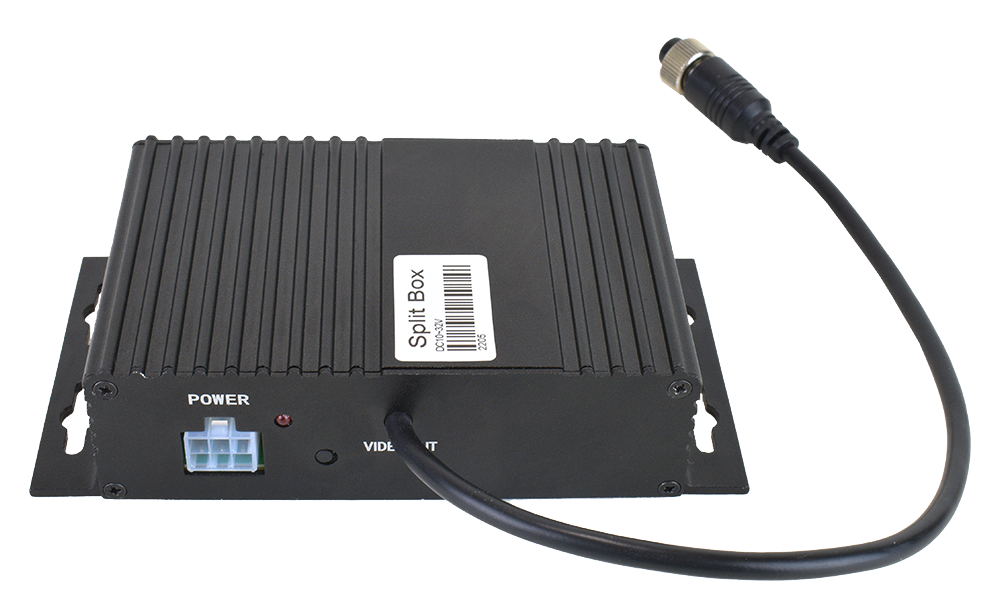

The 2-Channel AHD Multiplexer (P/N: MUL-802/8090387) allows two cameras to be joined for a single output to the monitor/display or recorder. The multiplexer provides power to the camera(s) and can be installed to power on whenever the vehicle ignition is on or whenever USB power is detected (using the USB Wake-Up feature). The multiplexer has a status indicator light. There is one video output that can be configured to output Standard Definition (SD) video (default) or 1080P AHD.

2D Drawing: https://files.provisionusa.com/guides/drawings/8090387_2CH_MUX_Drawing.pdf

View Mode: Dual View (side by side). It cannot be configured for alternate modes.

Four (4) Channel AHD Multiplexer

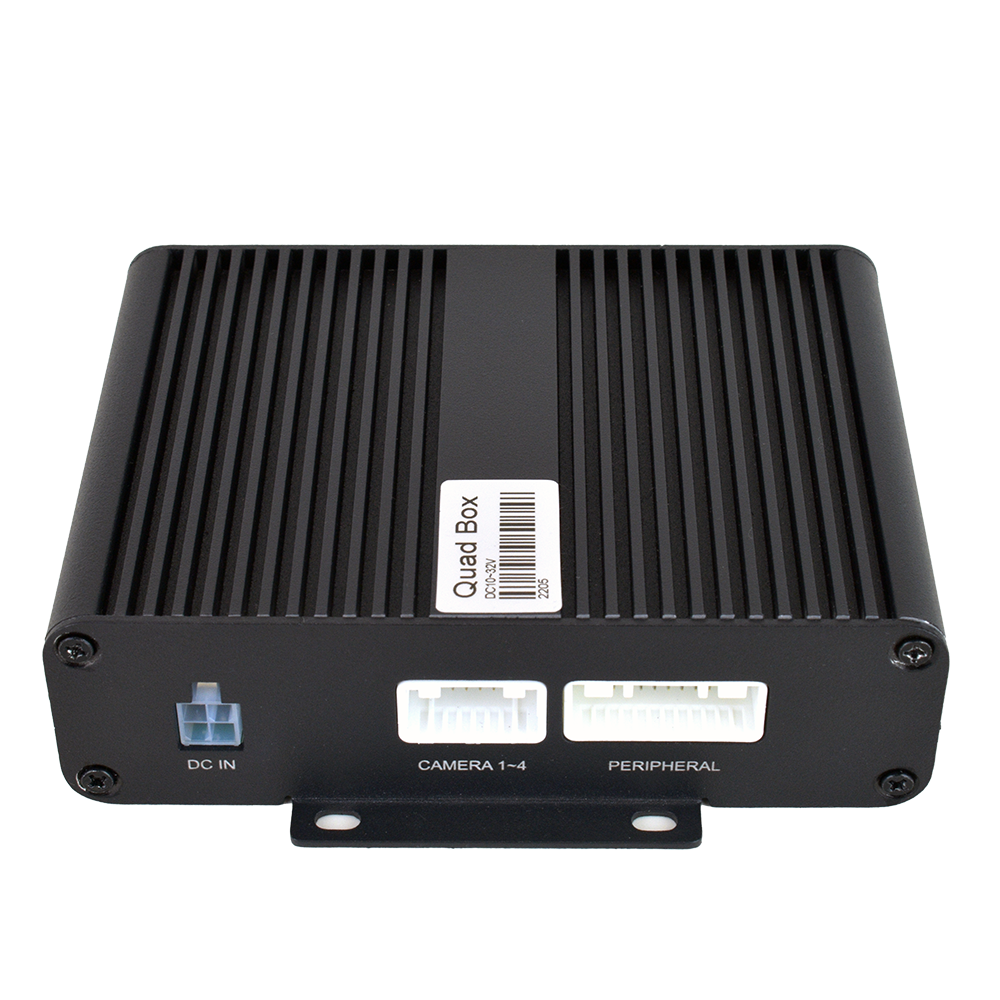

The 4-Channel AHD Multiplexer (P/N: MUL-804/8090388) allows up to four cameras to be connected and joined together for a single output to a monitor/display or recorder. The multiplexer is configurable to output 2, 3, or 4 cameras. The multiplexer provides power to the camera, and it can be installed to power on whenever the vehicle ignition is on, or it can be installed to allow it to power on whenever USB power is detected (using the USB Wake-Up feature). The multiplexer has indicator lights to show its status and the status of the connected cameras. There are two video outputs; one provides Standard Definition (SD) video output and the other provides 1080P AHD video output.

2D Drawing: https://files.provisionusa.com/guides/drawings/8090388_4CH_MUX_Drawing.pdf

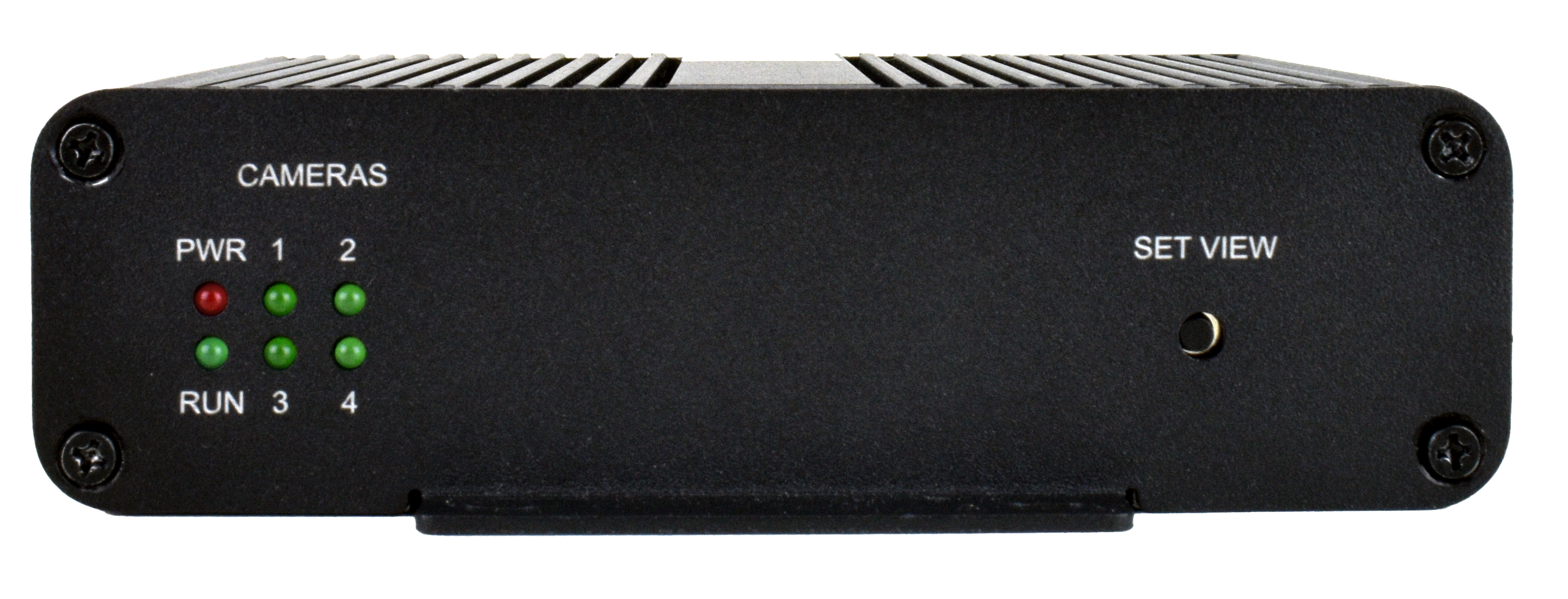

View Modes: There are three (3) view output modes on the device - 2 Camera (dual), 3 Camera, and 4 Camera (quad). To change the view mode, connect the cameras to the multiplexer, power it on, and press/hold the “Set View” button on the front panel for 5 seconds. The view mode will adjust to the number of cameras displayed.


_________________________________________________

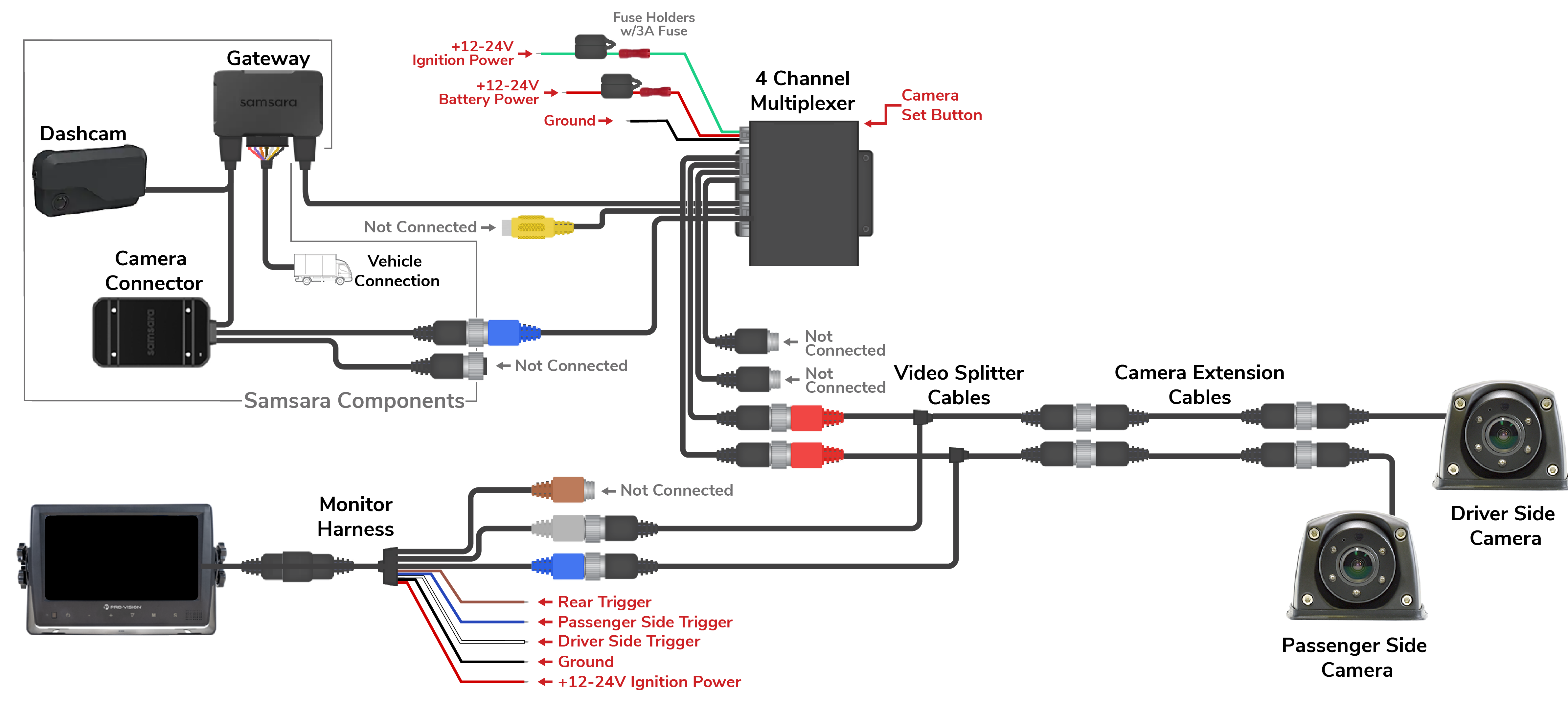

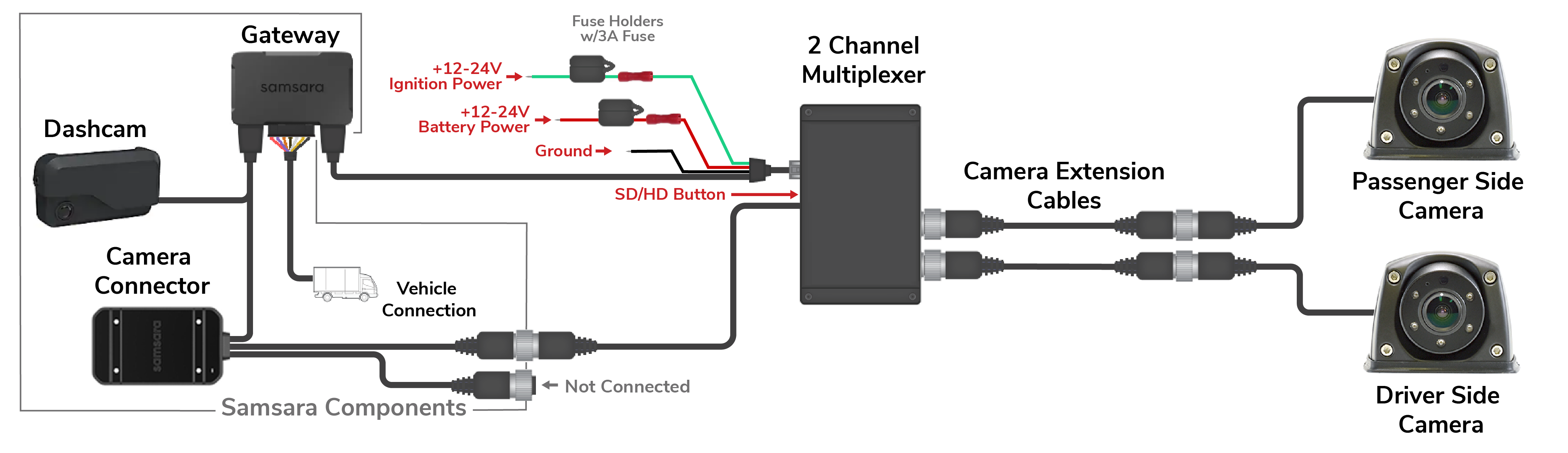

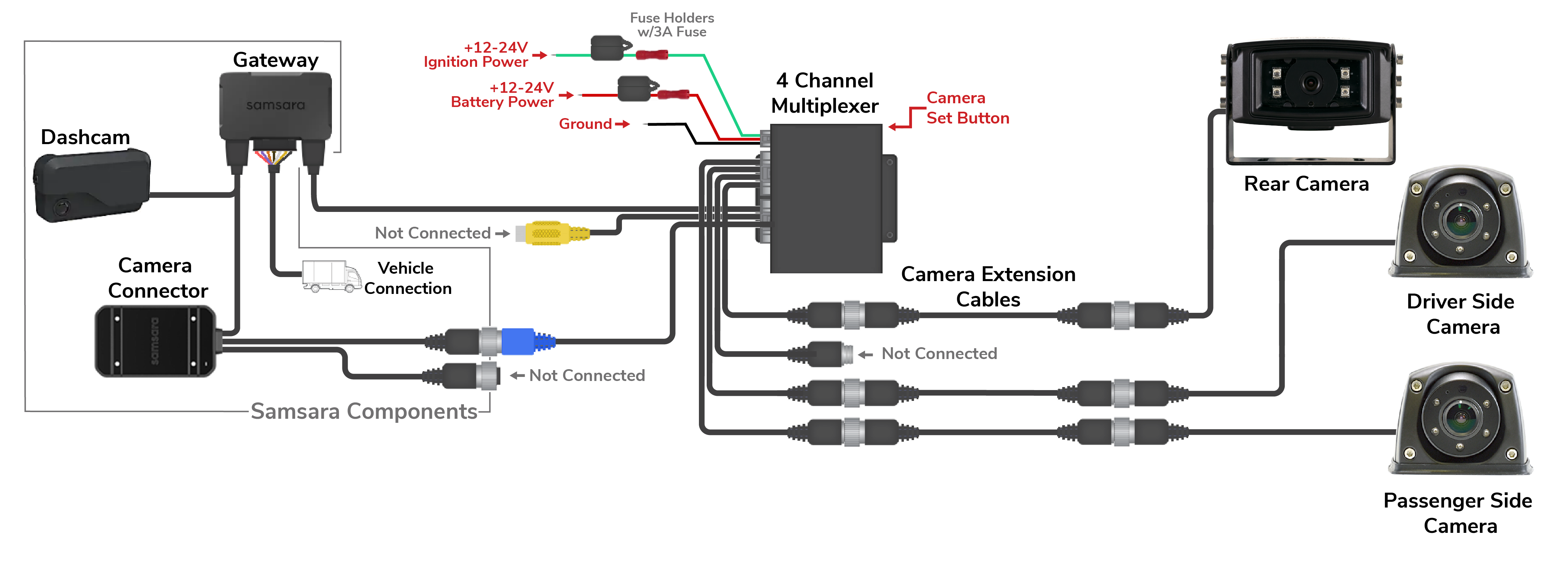

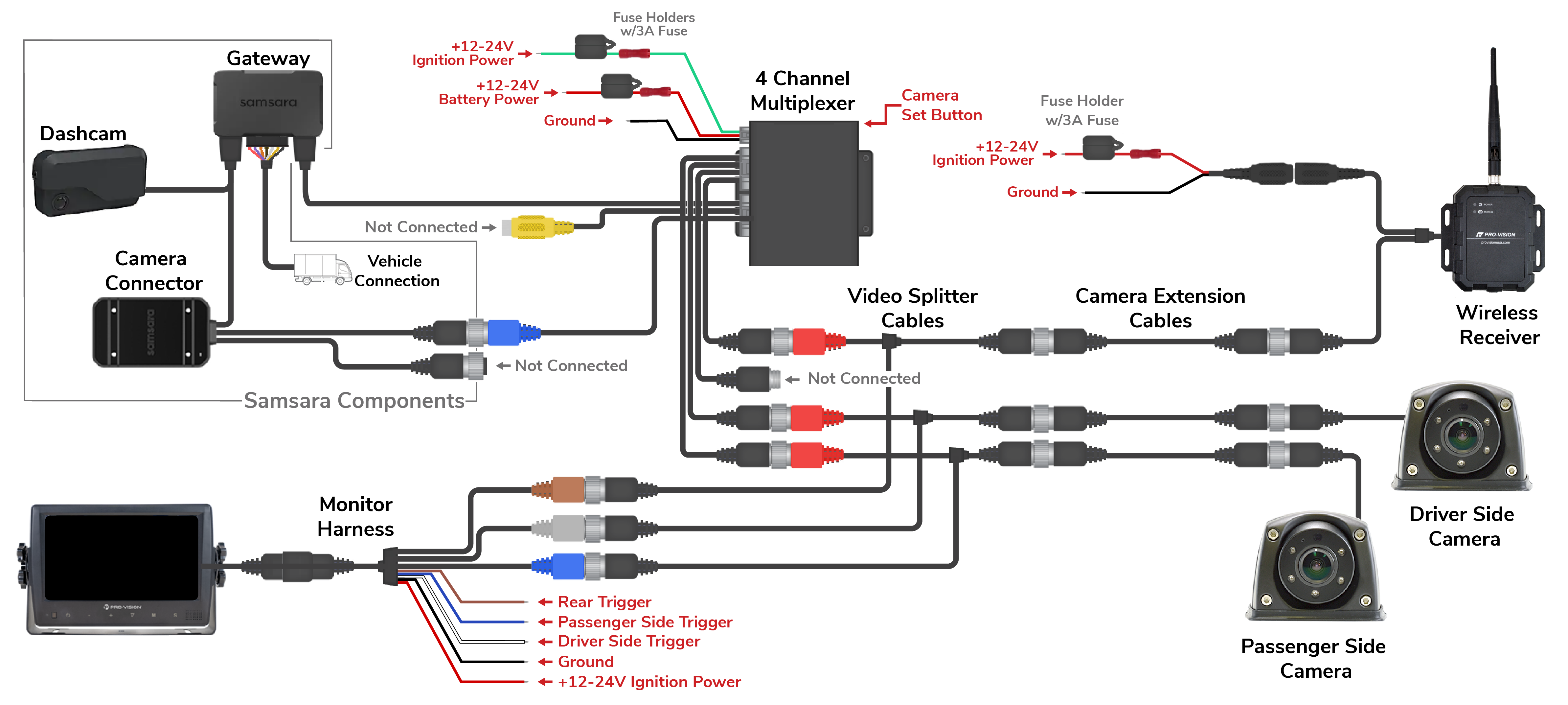

Sample Configuration Diagrams with Multiple Components

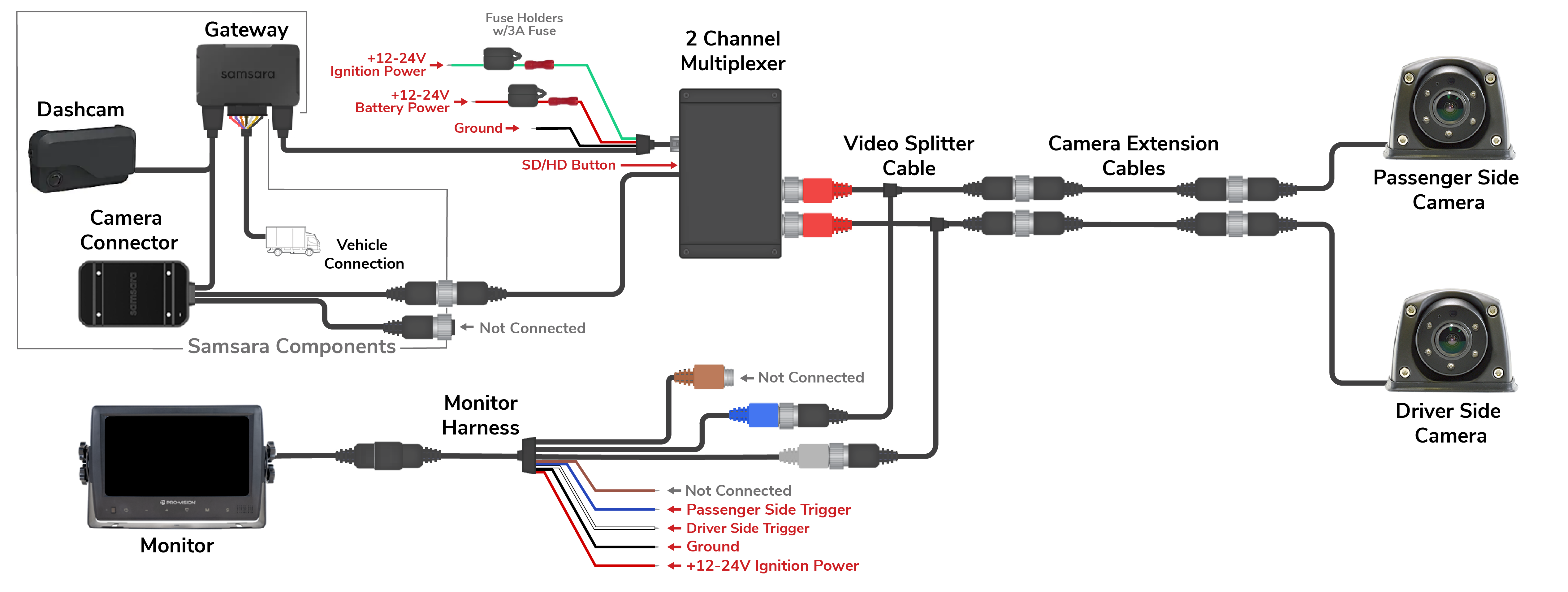

RW_PV-2CAM-4CH-MON - Splitter.png

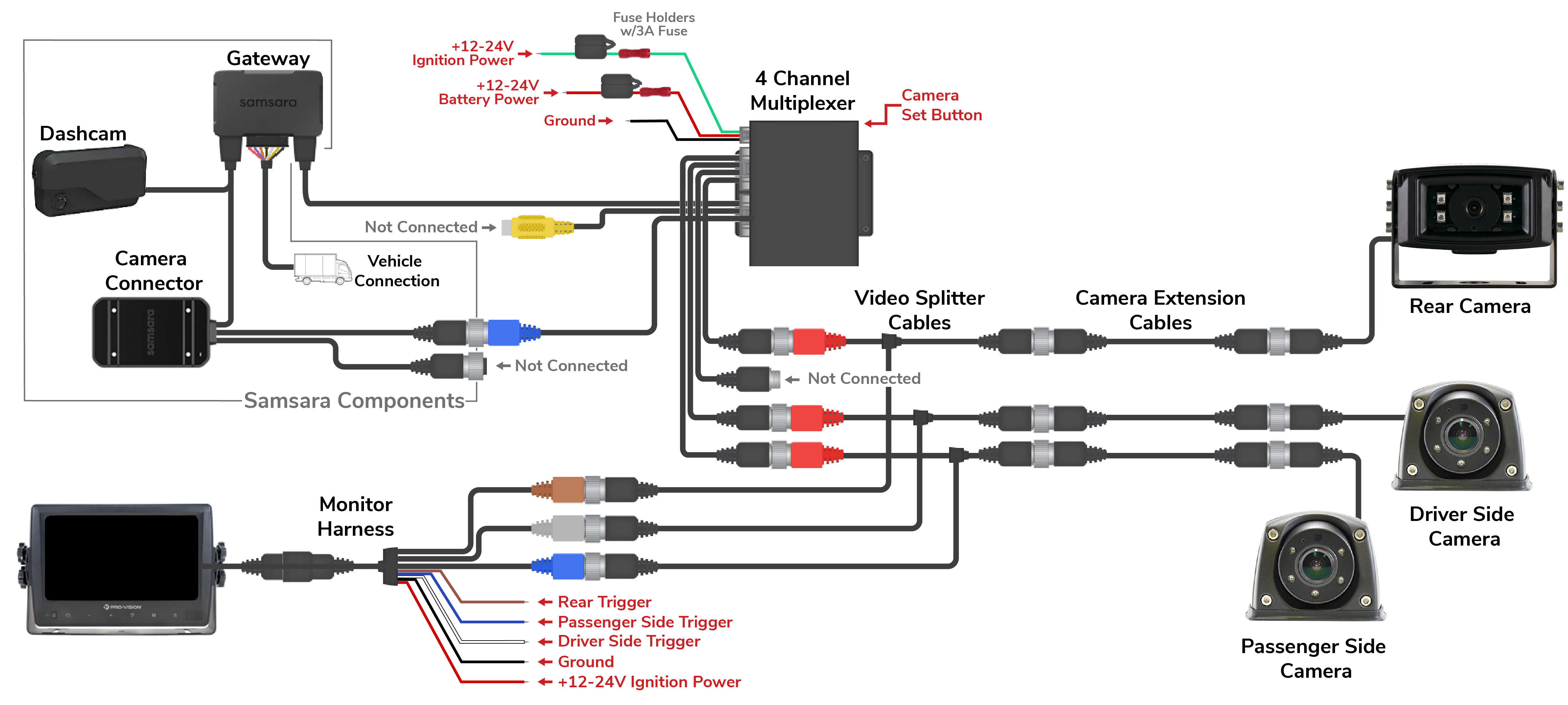

RW_PV-3CAM-4CH-MON - Splitters.png
